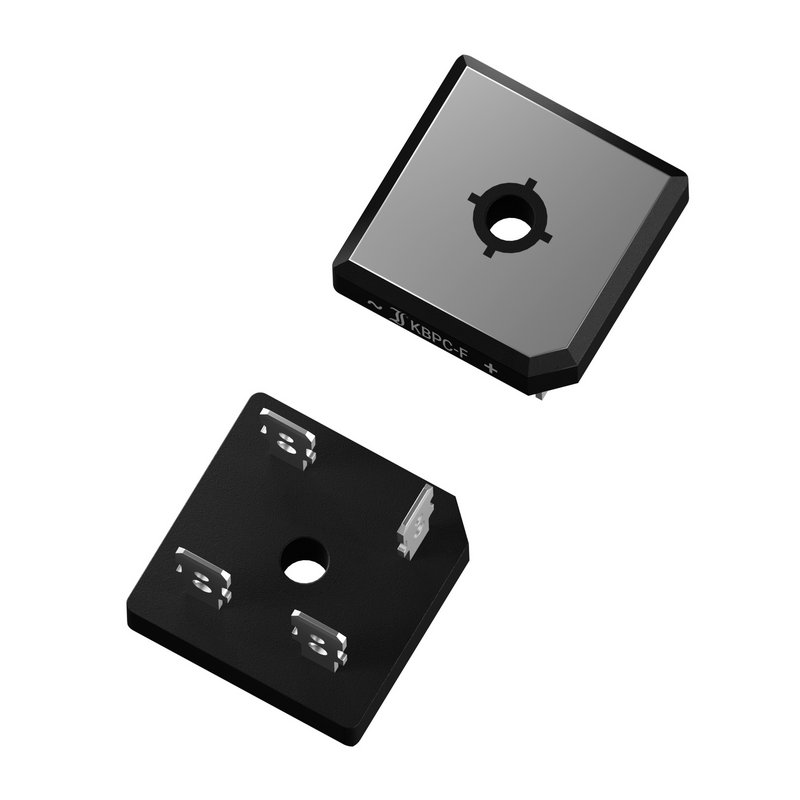

KBPC3510FP
Bridge, 1-ph, KBPC, 1000V, 35A, 150°C
Availability: In Stock
Package Type: KBPC

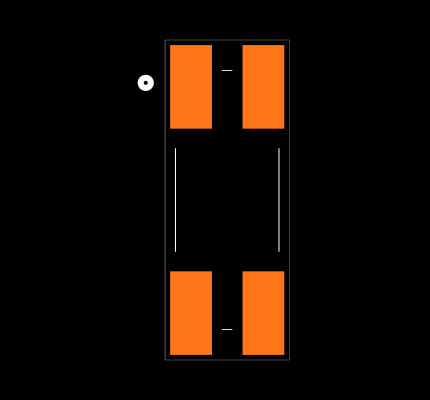

CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KBPC3510FP by Diotec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

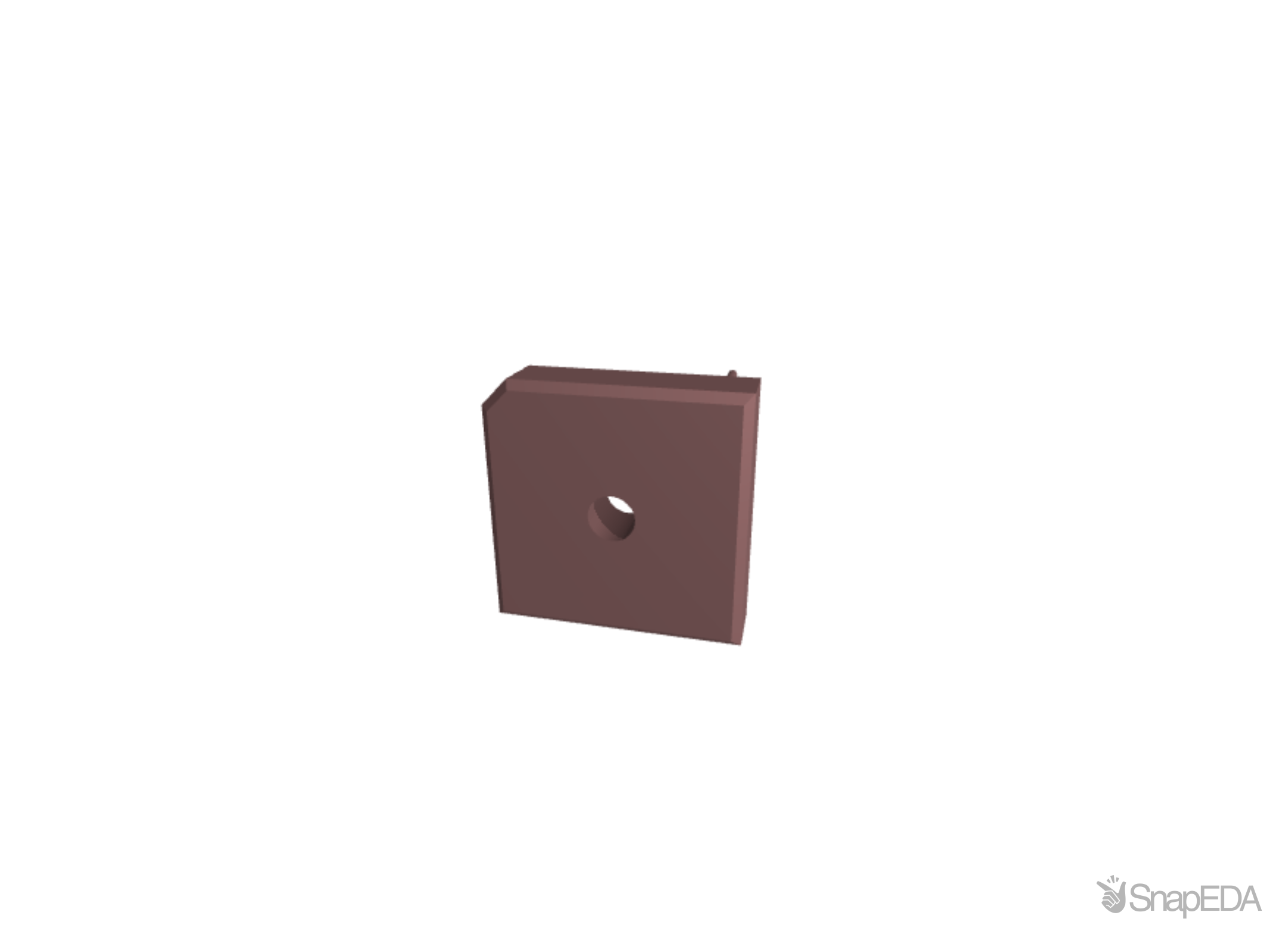

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KBPC3510FP
| Part Name | KBPC3510FP |
| Manufacturer | Diotec |
| Article Housing | KBPC |
| RoHS | True |
| Product Link | https://diotec.com/de/produkt/KBPC3510FP.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Bridge Type | Single Phase |
| Mounting Type | Quick Connect |
| Peak Average Forward Current (A) | 35 (A) |
| Package Type | KBPC-F |
| Peak Reverse Repetitive Voltage (V) | 700 (V) |
| Distrelec Product Id | 17000203 |
| Pin Count | 4 |
