KBU1007G
10A, 1000V, Standard Bridge Rectifier
Availability: In Stock
Package Type: KBU
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KBU1007G by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

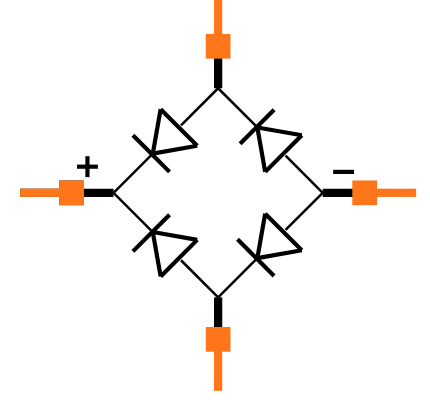

Symbol
No web preview
This Symbol is Available for

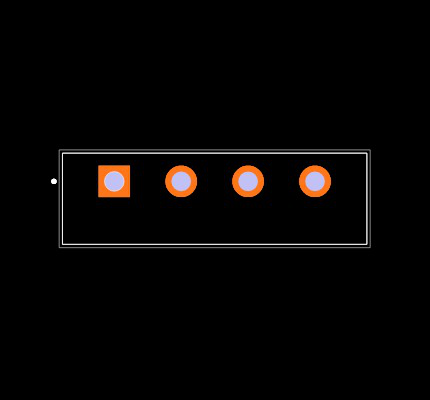

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KBU1007G
| Part Name | KBU1007G |
| Manufacturer | Taiwan Semiconductor |
| Family | STD GPP |
| Maximum DC Reverse Current (A) | 5e-06 |
| Package | KBU |
| Case Package | KBU |
| Peak Forward Surge Current (A) | 200.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.1 |
| Maximum Average Forward Rectified Current (A) | 10.0 |
| Maximum Repetitive Peak Reverse Voltage (V) | 1000.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 23.7 x 7.1 x 19.3 (mm) |
| Bridge Type | Single Phase |
| Peak Average Forward Current (A) | 10 (A) |
| Mounting Type | Through Hole |
| Height | 19.3 (mm) |
| Peak Reverse Current (A) | 5 (µA) |
| Width | 7.1 (mm) |
| Length | 23.7 (mm) |
| Package Type | KBU |
| Peak Reverse Repetitive Voltage (V) | 1000 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 1.1 (V) |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Peak Non Repetitive Forward Surge Current (A) | 200 (A) |
