KDZTR18B
Zener Diode 19 V 1 W ±6% Surface Mount PMDU
Availability: In Stock
Package Type: SOD-123
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KDZTR18B by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

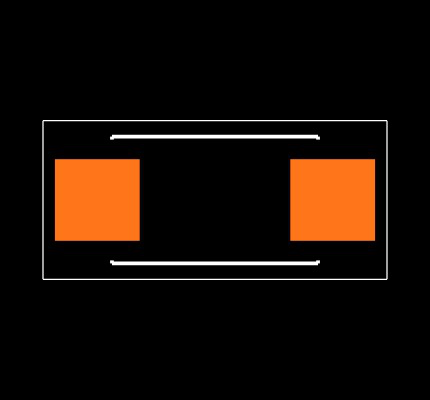

Footprint
No web preview
This Footprint is Available for

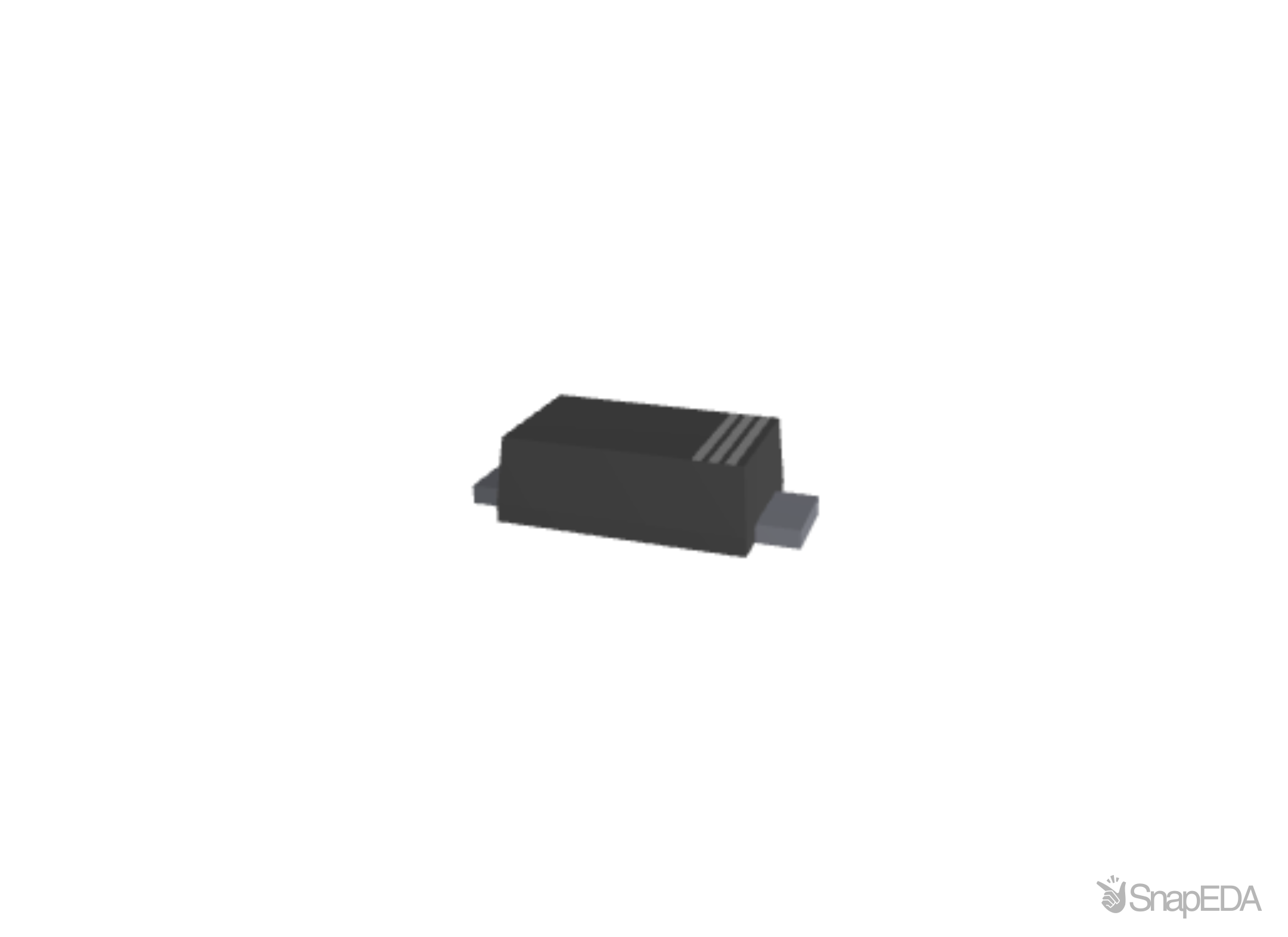

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KDZTR18B
| Part Name | KDZTR18B |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 19 (V) |
| Dimensions | 2.6 x 1.6 x 0.8 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1 W |
| Typical Voltage Temperature Coefficient (V) | 15 (mV/°C) |
| Maximum Reverse Leakage Current (A) | 10 (µA) |
| Zener Type | Voltage Regulator |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Package Type | SOD-123 |
| Zener Voltage Tolerance (V) | 6 (%) |
| Maximum Operating Temperature | +150 °C |
| Diode Configuration | Single |
| Pin Count | 2 |
| Test Current (A) | 20 (mA) |
Inventory for the KDZTR18B by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,838
|
|
Visit Site | |
|
★ Featured
|
294,000
|
4,415 x $0.08
|
Visit Site |
No issues have been reported for the KDZTR18B
