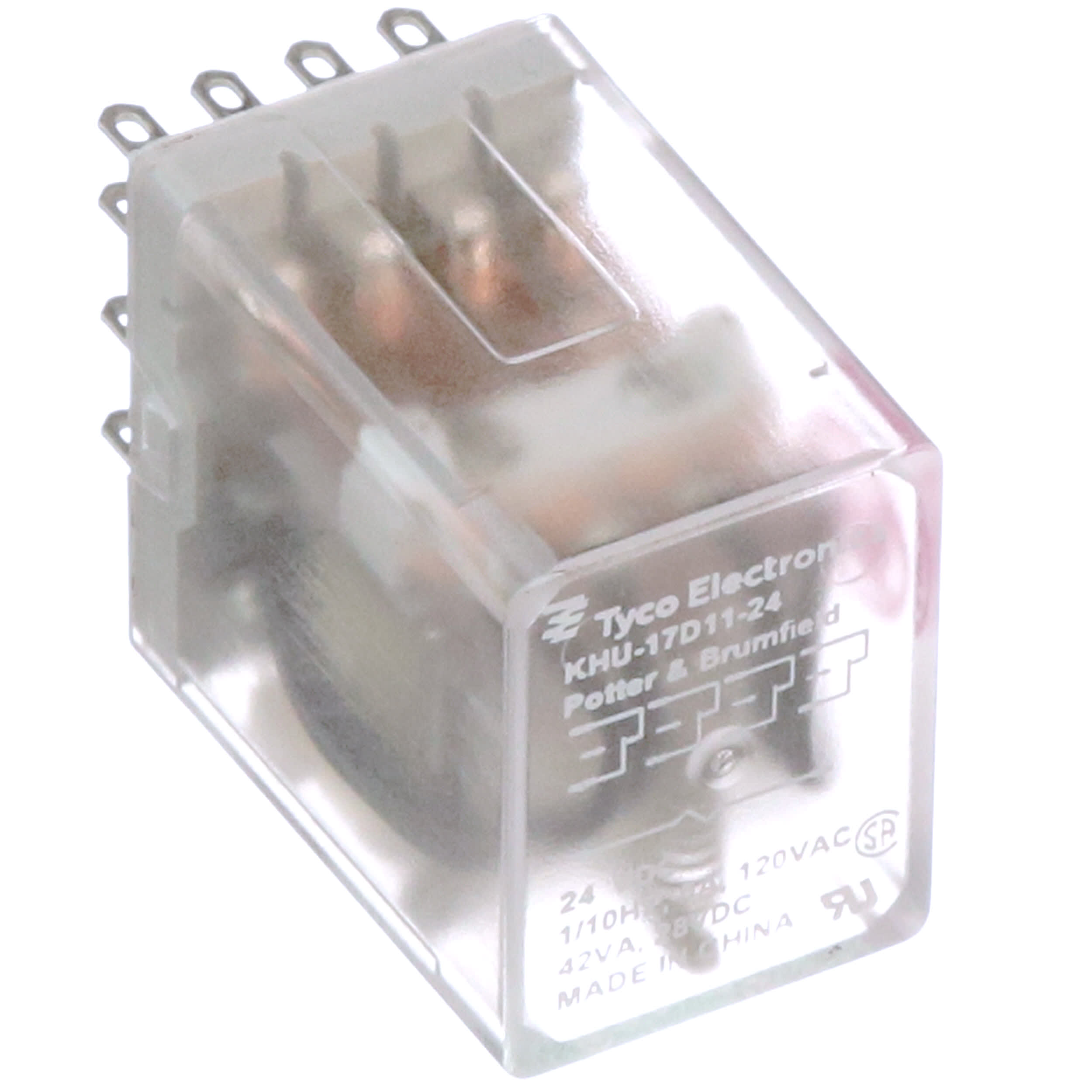

KHU-17D11-24
Relay, E-Mech, DPDT, 5A, Ctrl-V 24DC, Vol-Rtg 120/28AC/DC, Solder, KHU Series | TE Connectivity KHU-17D11-24
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KHU-17D11-24 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

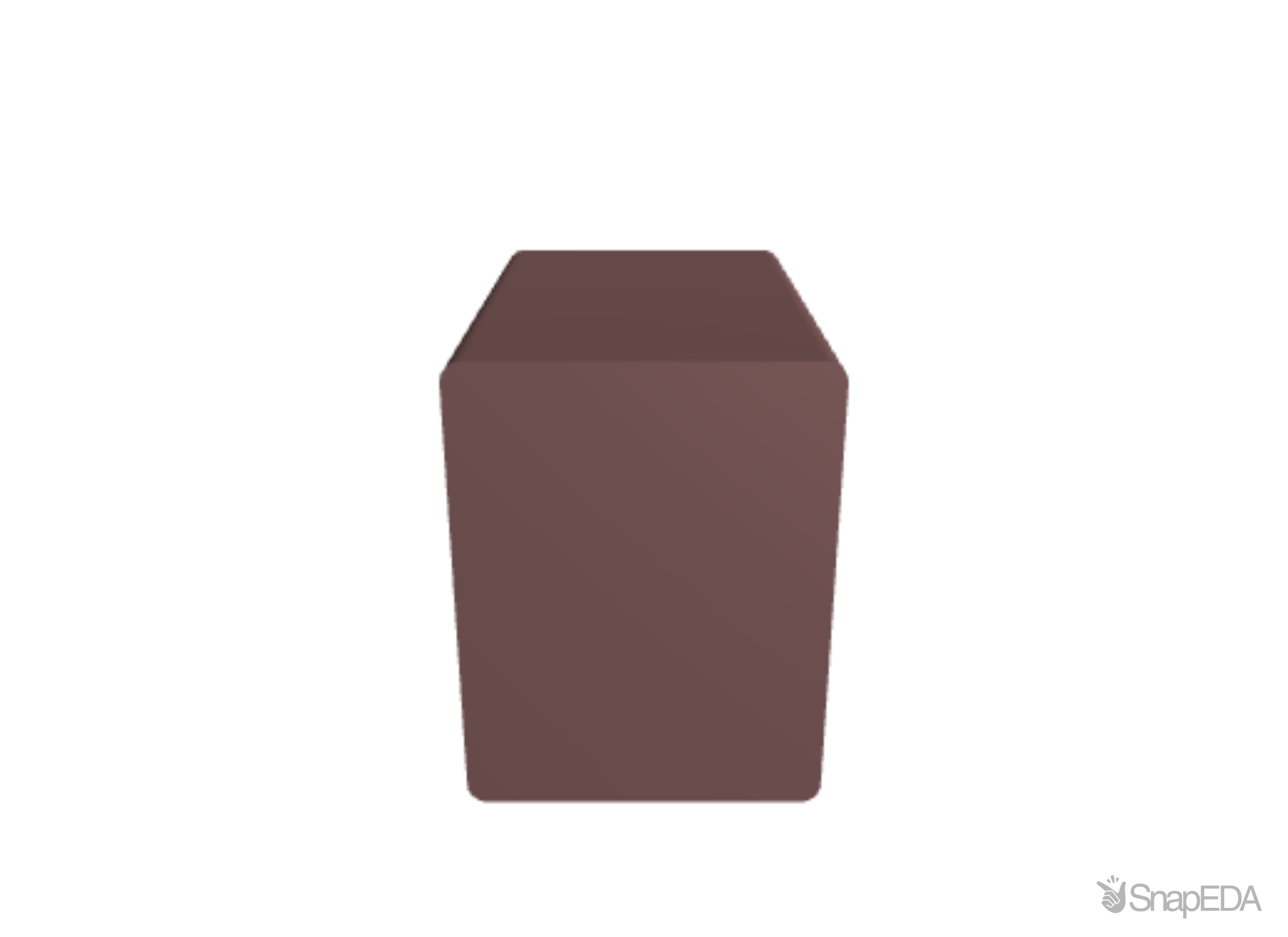

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KHU-17D11-24
| Part Name | KHU-17D11-24 |
| Manufacturer | TE Connectivity / P&B |
| Category | Relays |
| Insulation Initial Dielectric Between Contacts & Coil | 1500 |
| Product Weight | 1.587 |
| Coil Special Features | UL Coil Insulation Class B |
| Height Class (Mechanical) | 30 – 40 |
| Product Width | .858 |
| Insulation Initial Resistance | 100 |
| Coil Power Rating DC | 850 |
| Coil Resistance | 650 |
| Contact Current Class (A) | 16 |
| Contact Arrangement | 4 Form C (CO) |
| Contact Number of Poles | 4 |
| TE Internal Number | 4-1393123-1 |
| Product Height | 38.1 |
| Insulation Initial Dielectric Between Coil & Contact Class | 1000 – 1500 |
| Width Class (Mechanical) | 20 – 25 |
| Terminal Type | Solder |
| Relay Mounting Type | Socket |
| Product Length | 28.2 |
| Operating Temperature Range | -45 – 70 |
| Coil Voltage Rating (V) | 24 |
| Packaging Method | Tray |
| Environmental Ambient Temperature (Max) | 158 |
| Contact Switching Load (Min) | 100mA @ 12V |
| Power Relay Type | Industrial Panel Plug-In |
| Coil Magnetic System | Monostable, DC |
| Actuating System | DC |
| RoHS | RoHS Compliant By Exemption |
| Life Cycle Status | End of Life |
| Environmental Ambient Temperature Class | 50 – 70 |
| Contact Voltage Rating (V) | 240 |
| Coil Power Rating Class | 800 – 1000 |
| Contact Current Rating (Max) (A) | 2.5 |
| Insulation Initial Dielectric Between Adjacent Contacts | 1500 |
| Length Class (Mechanical) | 25 – 30 |
| Environmental Category of Protection | RTI |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | Ag |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
