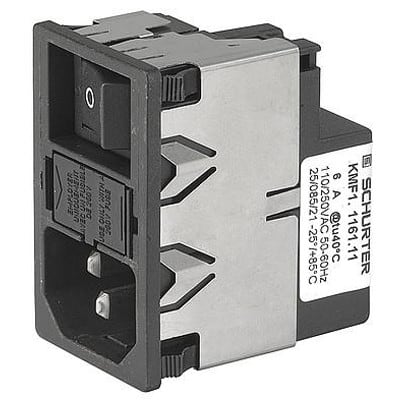

KMF1.1261.11
Power Entry Modules, AC, 6A 2-P SW 1-P FUSE 10A/250VAC No/Drawer | Schurter KMF1.1261.11
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KMF1.1261.11 by Schurter and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KMF1.1261.11
| Part Name | KMF1.1261.11 |
| Manufacturer | Schurter |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Fuses | 1 |
| Current Rating (A) | 6 (A) |
| Mounting Type | Snap-In |
| Voltage Rating (V) | 125 V ac, 250 V ac |
| Distrelec Product Id | 16963528 |
| Gender | Male |
| Fuse Size | 5 x 20 (mm) |
| Height | 50 (mm) |
| Width | 30.5 (mm) |
| Depth | 42.9 (mm) |
| Termination Method | Quick Connect |
| Operating Frequency | 50 Hz, 60 Hz |
| Iec Connector Type | C14 |
| Switch Type | 2 Pole |
