KWS10A-24
AC-DC, PCB Mount, 85-265V, 24V 0.5A, 12W
Availability: In Stock
Package Type: DIP-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the KWS10A-24 by TDK-Lambda and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

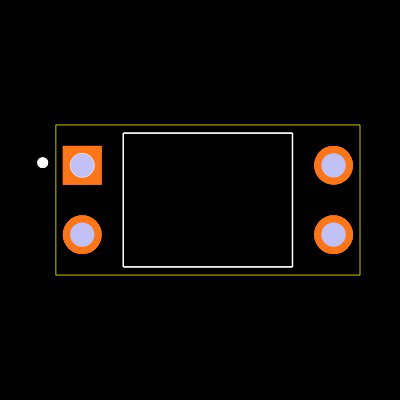

Footprint
No web preview
This Footprint is Available for

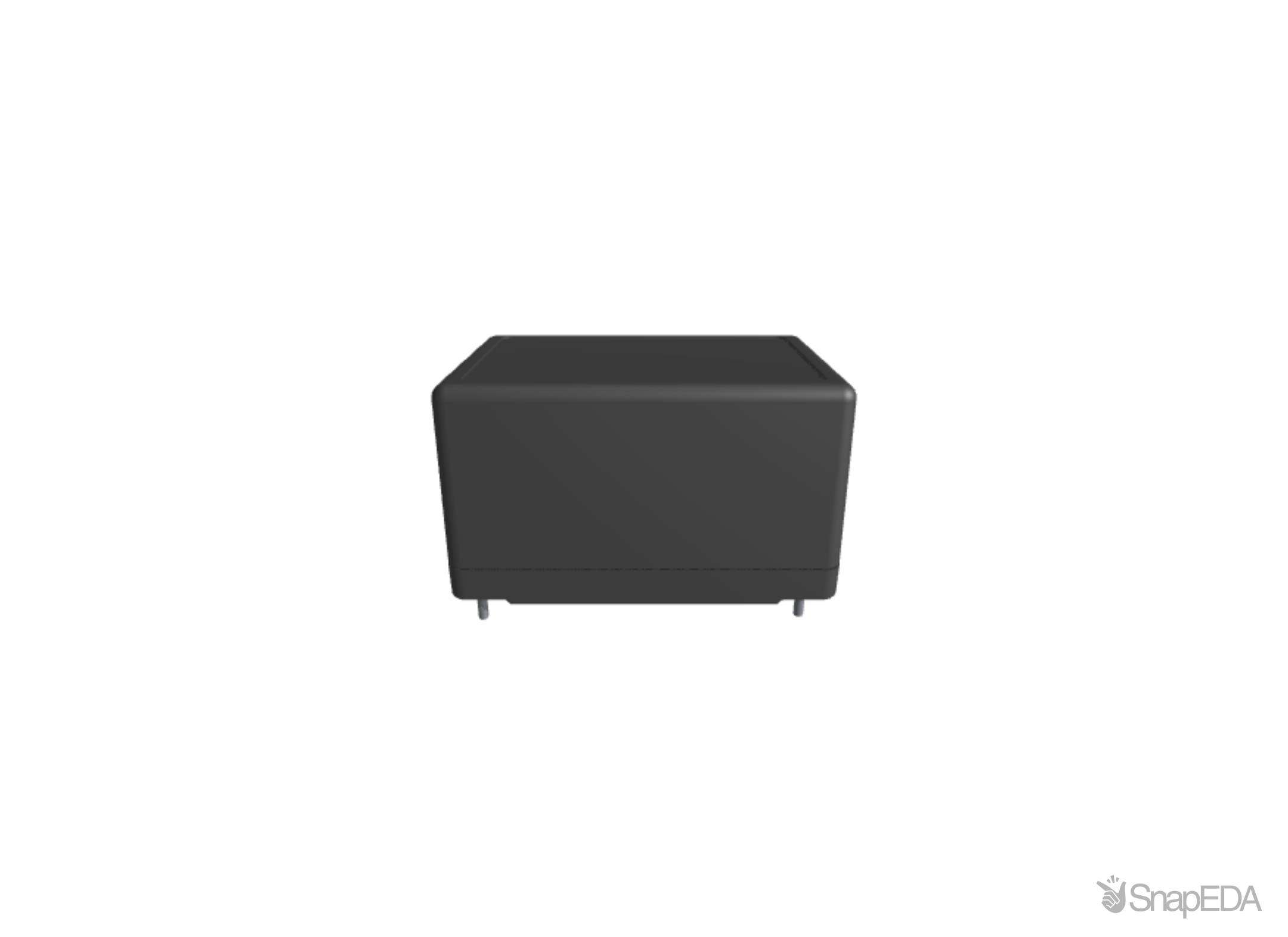

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the KWS10A-24
| Part Name | KWS10A-24 |
| Manufacturer | TDK-Lambda |
| Category | Power Products |
| Sample Link | https://product.tdk.com/en/search/power/switching-power/ac-dc-converter/info?part_no=KWS10A-24 |
| Product Sub-Type | PCB Mount |
| Series | KWS-A |
| Product Link | https://product.tdk.com/en/search/power/switching-power/ac-dc-converter/info?part_no=KWS10A-24 |
| Product Type | AC-DC |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Mounting Type | PCB Mount |
| Weight | 35 (g) |
| Efficiency | 84 (%) |
| Minimum Temperature | -10 (°C) |
| Distrelec Product Id | 30118326 |
| Depth | 21.5 (mm) |
| Width | 25.4 (mm) |
| Length | 38.1 (mm) |
| Input Voltage (V) | 120 → 370 V dc, 85 → 265 V ac |
| Package Type | Encapsulated |
| Output Voltage (V) | 24 (V dc) |
| Power Rating | 12 (W) |
| Output Current (A) | 500 (mA) |
Inventory for the KWS10A-24 by TDK-Lambda from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
355
|
|
Visit Site | |
|
★ Featured
|
44
|
|
Visit Site | |
|
★ Featured
|
185
|
N/A | Visit Site | |
| Verical |
1
|
1 x $71.94
|
Visit Site |
No issues have been reported for the KWS10A-24
