KWS5A-5

Name: KWS5A-5
Brand: TDK-Lambda

AC-DC, PCB Mount, 85-265V, 5V 1A, 5W

Availability: Out of Stock

Package Type: DIP-4

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the KWS5A-5 by TDK-Lambda and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

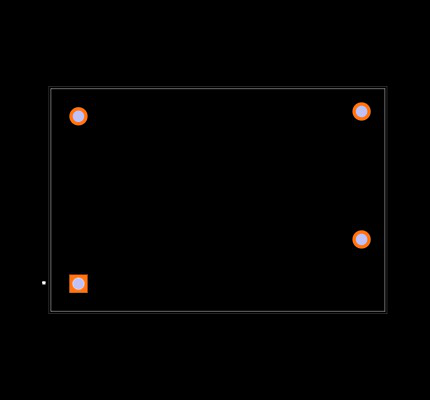

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the KWS5A-5

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the KWS5A-5

Part Name	KWS5A-5
Manufacturer	TDK-Lambda
Category	Power Products
Sample Link	https://product.tdk.com/en/search/power/switching-power/ac-dc-converter/info?part_no=KWS5A-5
Product Sub-Type	PCB Mount
Series	KWS-A
Product Link	https://product.tdk.com/en/search/power/switching-power/ac-dc-converter/info?part_no=KWS5A-5%2FKS
Product Type	AC-DC
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet
Number Of Outputs	1
Maximum Temperature	+85 (°C)
Mounting Type	PCB Mount
Weight	35 (g)
Width	25.4 (mm)
Minimum Temperature	-10 (°C)
Length	38.1 (mm)
Input Voltage (V)	120 → 370 V dc, 85 → 265 V ac
Efficiency	74 (%)
Depth	21.5 (mm)
Output Voltage (V)	5 (V dc)
Package Type	Encapsulated
Power Rating	5 (W)
Output Current (A)	1 (A)

We could not find inventory or pricing across major distributors for the KWS5A-5 by TDK-Lambda.
