L17H2220131

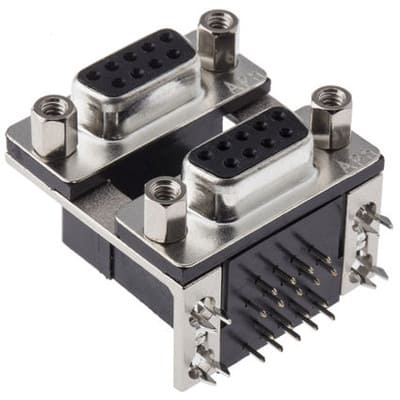

L17H Series,9 Way Right Angle Mount Stacked PCB D-Sub Conn Socket,2.77mm Pitch | Amphenol Commercial (Amphenol CS) L17H2220131
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L17H2220131 by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L17H2220131
| Part Name | L17H2220131 |
| Manufacturer | Amphenol ICC |
| Category | Connectors |
| Product Link | https://www.amphenol-cs.com/d-sub-l17h2220131.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3 (A) |
| Dimensions | 30.84 x 25.7 x 31.6 (mm) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Gender | Female |
| Series | L17H |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Depth | 31.6 (mm) |
| Housing Material | Steel |
| Width | 25.7 (mm) |
| Length | 30.84 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Pitch | 2.77 (mm) |
| Mounting Hardware | 4-40 UNC Female Screwlocks, Boardlocks |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 9 |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Phosphor Bronze |
No issues have been reported for the L17H2220131
If you experienced any issues with the symbol or footprint, please report it.
