L272D
Standard (General Purpose) Amplifier 2 Circuit 16-SO
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L272D by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

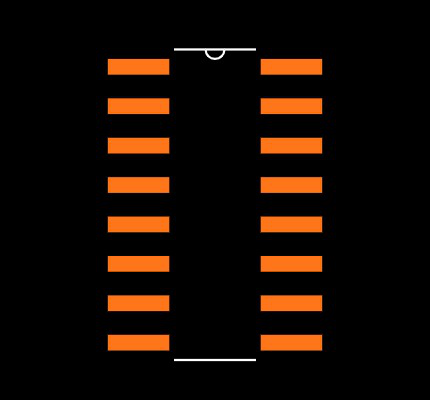

Footprint
No web preview
This Footprint is Available for

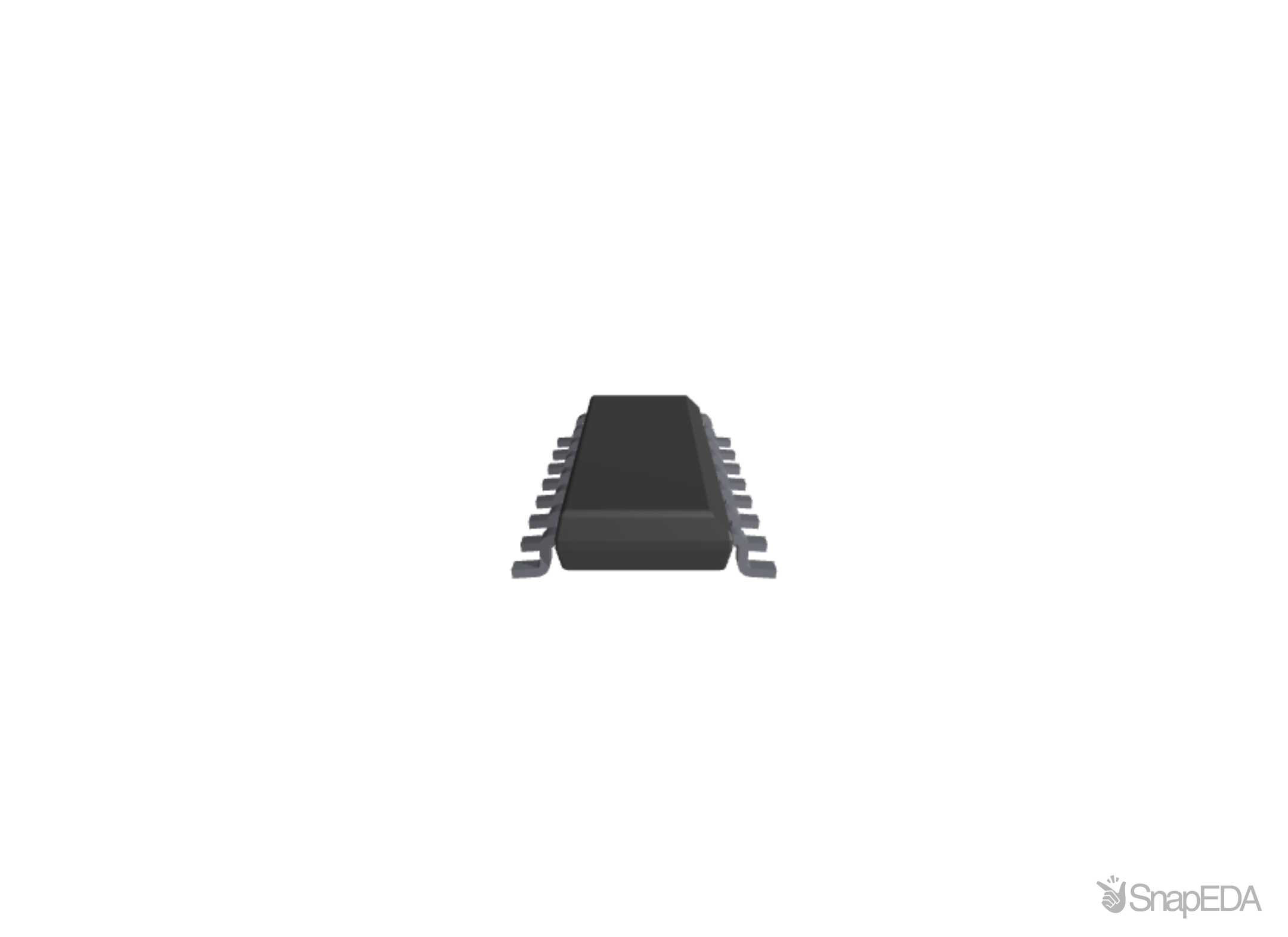

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L272D
| Part Name | L272D |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Dual Supply Voltage (V) | ±12 V, ±3 V, ±5 V, ±9 V |
| Typical Voltage Gain (V) | 70 dB |
| Dimensions | 10 x 4 x 1.65 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 350 (kHz) |
| Typical Single Supply Voltage (V) | 5 → 24 V |
| Width | 4 (mm) |
| Length | 10 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | High Current |
| Height | 1.65 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
Inventory for the L272D by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,558
|
|
Visit Site | |
|
★ Featured
|
1,861
|
|
Visit Site | |
|
★ Featured
|
962
|
162 x $1.86
|
Visit Site | |
| Arrow Europe |
18,470
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
17
|
|
Visit Site | |
| Newark |
278
|
|
Visit Site | |
| RS UK |
1,660
|
|
Visit Site | |
| Verical |
5,000
|
1,000 x $1.12
|
Visit Site | |
| element14 Singapore |
17
|
|
Visit Site |
No issues have been reported for the L272D
