L296

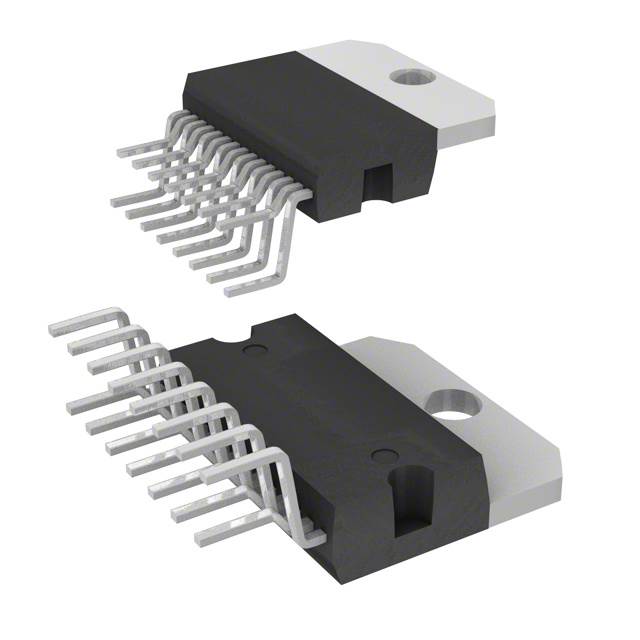

Buck Switching Regulator IC Positive Adjustable 5.1V 1 Output 4A Multiwatt-15 (Horizontal, Bent and Staggered Leads)
Availability: In Stock
Package Type: MULTIWATT-15
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L296 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

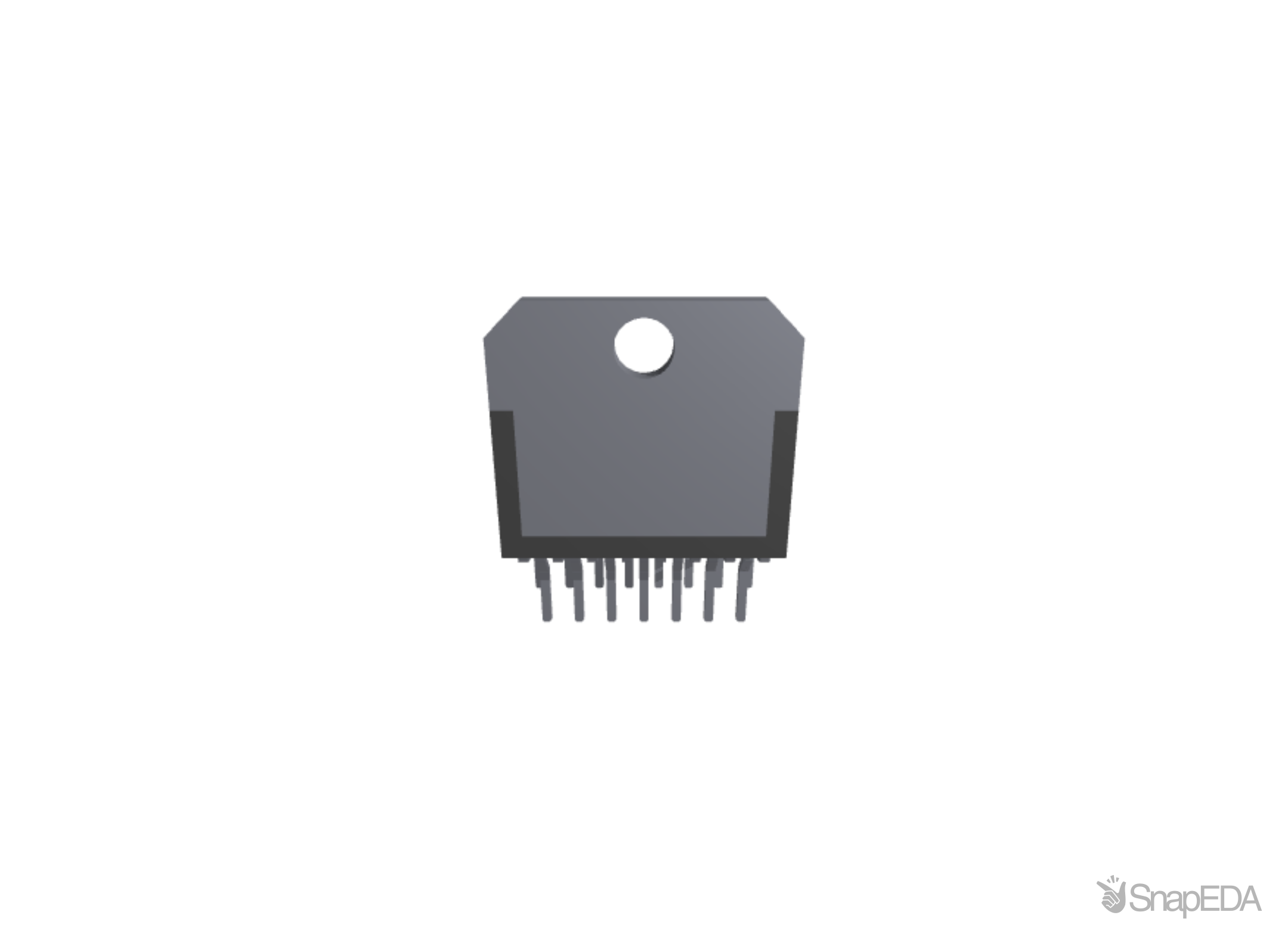

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L296
| Part Name | L296 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Converter Type | Step Down |
| Load Regulation | 45 mV |
| Dimensions | 19.6 x 5 x 10.7 (mm) |
| Mounting Type | Through Hole |
| Width | 5 (mm) |
| Maximum Operating Temperature | +150 °C |
| Line Regulation | 50 mV |
| Output Type | Adjustable |
| Maximum Switching Frequency | 0.2 MHz |
| Efficiency | 90 (%) |
| Length | 19.6 (mm) |
| Package Type | MULTIWATT V |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Height | 10.7 (mm) |
| Maximum Output Current (A) | 4 (A) |
| Pin Count | 15 |
| Maximum Input Voltage (V) | 46 V |
| Minimum Input Voltage (V) | 9 V |
Inventory for the L296 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,000
|
31 x $9.80
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Newark |
14
|
|
Visit Site | |
| Schukat Electronic |
40
|
|
Visit Site |
No issues have been reported for the L296
