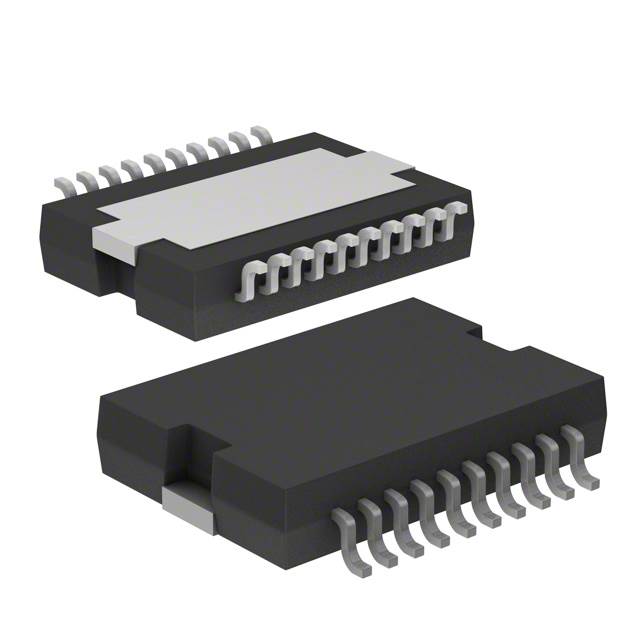

L298P
Full Bridge (2) Driver DC Motors, Relays, Solenoids, Stepper Motors Bipolar PowerSO-20
Availability: In Stock
Package Type: SO-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L298P by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L298P
| Part Name | L298P |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 16 x 11.1 x 3.3 (mm) |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 4.8 V |
| Maximum Collector Emitter Voltage (V) | 46 V |
| Maximum Igbt Collector Current (A) | 4 (A) |
| Height | 3.3 (mm) |
| Width | 11.1 (mm) |
| Length | 16 (mm) |
| Package Type | PowerSO |
| Typical Switching Frequency | 25 (kHz) |
| Minimum Operating Temperature | -25 °C |
| Output Configuration | Dual Full Bridge |
| Maximum Operating Supply Voltage (V) | 46 V |
| Motor Type | Brushed DC |
| Maximum Operating Temperature | +130 °C |
| Pin Count | 20 |
