L5973D
Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 2.5A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Availability: In Stock
Package Type: HSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L5973D by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

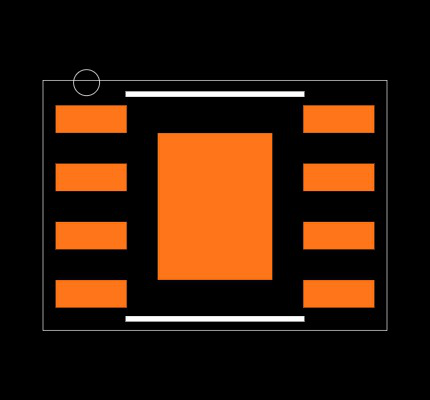

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L5973D
| Part Name | L5973D |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 8 |
| Number Of Outputs | 1 |
| Load Regulation | 15 mV |
| Dimensions | 5 x 4 x 1.25 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Voltage (V) | 35 V |
| Maximum Operating Temperature | +150 °C |
| Output Type | Adjustable |
| Maximum Switching Frequency | 280 kHz |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Height | 1.25 (mm) |
| Package Type | HSOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 1.235 V |
| Minimum Input Voltage (V) | 4 V |
| Maximum Output Current (A) | 3.5 (A) |
| Regulator Function | Buck Controller |
| Maximum Input Voltage (V) | 36 V |
| Line Regulation | 10 mV |
Inventory for the L5973D by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
190
|
|
Visit Site | |
|
★ Featured
|
278
|
260 x $1.16
|
Visit Site | |
| Arrow Electronics |
50,941
|
2,000 x $1.02
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
2,732
|
|
Visit Site | |
| RS UK |
1,045
|
|
Visit Site | |
| TME |
1,022
|
|
Visit Site | |
| Verical |
50,000
|
2,000 x $1.02
|
Visit Site |
No issues have been reported for the L5973D
If you experienced any issues with the symbol or footprint, please report it.
