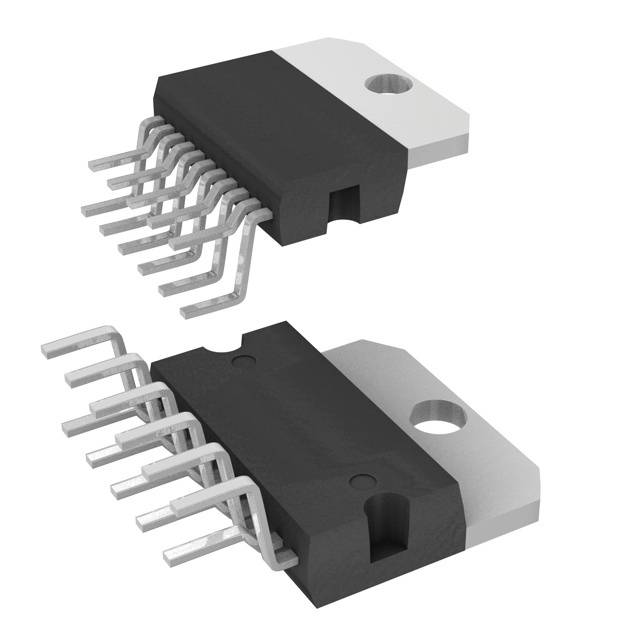

L6203
Half Bridge (2) Driver DC Motors, General Purpose BCDMOS 11-Multiwatt
Availability: In Stock
Package Type: MULTIWATT-11
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L6203 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L6203
| Part Name | L6203 |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 20.2 x 5 x 17.75 (mm) |
| Mounting Type | Through Hole |
| Minimum Operating Supply Voltage (V) | 12 V |
| Maximum Collector Emitter Voltage (V) | 48 V |
| Maximum Igbt Collector Current (A) | 4 (A) |
| Height | 17.75 (mm) |
| Width | 5 (mm) |
| Length | 20.2 (mm) |
| Package Type | MULTIWATT V |
| Typical Switching Frequency | 30 (kHz) |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | Full Bridge |
| Maximum Operating Supply Voltage (V) | 48 V |
| Motor Type | Brushed DC |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 11 |
Inventory for the L6203 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
998
|
|
Visit Site | |
|
★ Featured
|
9,051
|
93 x $3.24
|
Visit Site | |
| Arrow Europe |
995
|
|
Visit Site | |
| Verical |
995
|
2 x $7.56
|
Visit Site |
No issues have been reported for the L6203
If you experienced any issues with the symbol or footprint, please report it.
