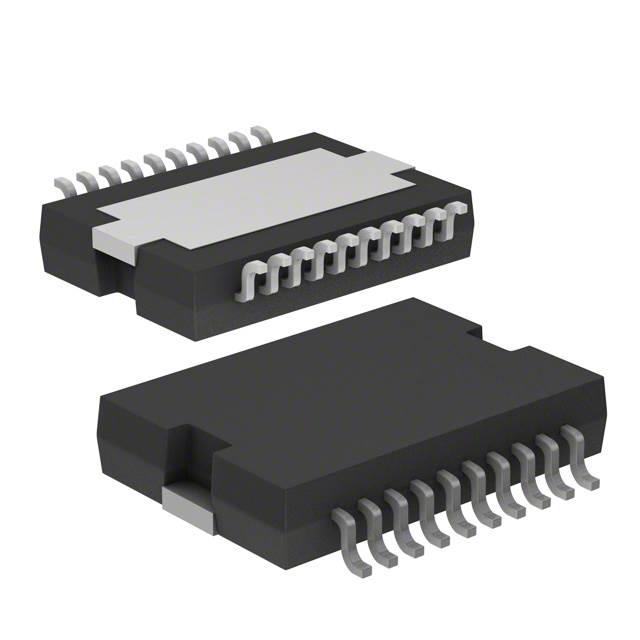

L6234PD013TR
- Motor Driver BiCDMOS Parallel PowerSO-20
Availability: In Stock
Package Type: SO-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L6234PD013TR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L6234PD013TR
| Part Name | L6234PD013TR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Product Length | 16 (mm) |
| Configuration | 3 Phase |
| Dimensions | 16 x 11.1 x 3.3 (mm) |
| Maximum Operating Supply Voltage (V) | 42 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage (V) | 7 V |
| Maximum Supply Voltage (V) | 42 V |
| Product Width | 11.1 (mm) |
| Width | 11.1 (mm) |
| Length | 16 (mm) |
| Height | 3.3 (mm) |
| Package Type | PowerSO |
| Typical Switching Frequency | 150 (Maximum) (kHz) |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Motor Type | BLDC |
| Maximum Output Current (A) | 4 (A) |
| Pin Count | 20 |
| Product Height | 3.3 (mm) |
Inventory for the L6234PD013TR by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
378
|
|
Visit Site | |
|
★ Featured
|
2,767
|
|
Visit Site | |
|
★ Featured
|
1,800
|
78 x $3.86
|
Visit Site | |
| Arrow Electronics |
16,200
|
600 x $3.17
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
1
|
|
Visit Site | |
| Farnell UK |
157
|
|
Visit Site | |
| Newark |
19
|
|
Visit Site | |
| RS UK |
1,176
|
600 x $5.53
|
Visit Site | |
| Schukat Electronic |
1,145
|
|
Visit Site | |
| Verical |
600
|
600 x $3.67
|
Visit Site | |
| element14 Singapore |
157
|
|
Visit Site |
No issues have been reported for the L6234PD013TR
