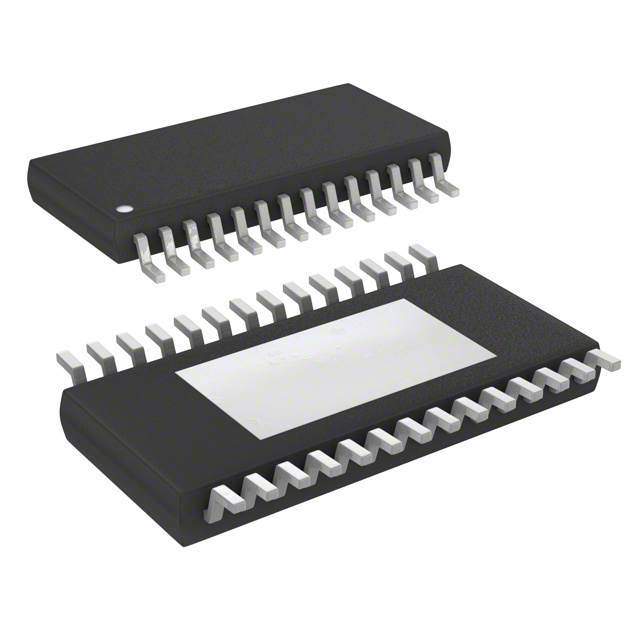

L6470H
Bipolar Motor Driver DMOS SPI 28-HTSSOP
Availability: Out of Stock
Package Type: HTSSOP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L6470H by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L6470H
| Part Name | L6470H |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Motor Type | Stepper |
| Dimensions | 9.8 x 4.5 x 1.05 (mm) |
| Maximum Operating Supply Voltage (V) | 45 V |
| Mounting Type | Surface Mount |
| Maximum Collector Emitter Voltage (V) | 45 V |
| Maximum Igbt Collector Current (A) | 3 (A) |
| Height | 1.05 (mm) |
| Width | 4.5 (mm) |
| Length | 9.8 (mm) |
| Package Type | TSSOP |
| Typical Switching Frequency | 125 (kHz) |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | Bipolar |
| Minimum Operating Supply Voltage (V) | 8 V |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 28 |
No issues have been reported for the L6470H
