L7812
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220AB
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L7812 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

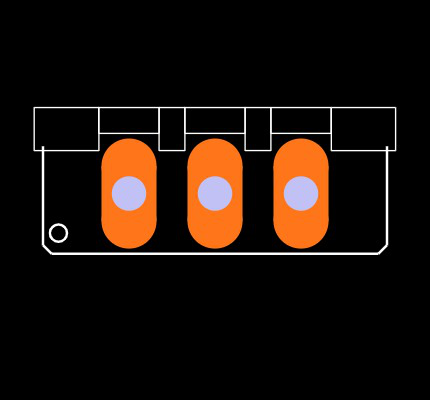

Footprint
No web preview
This Footprint is Available for

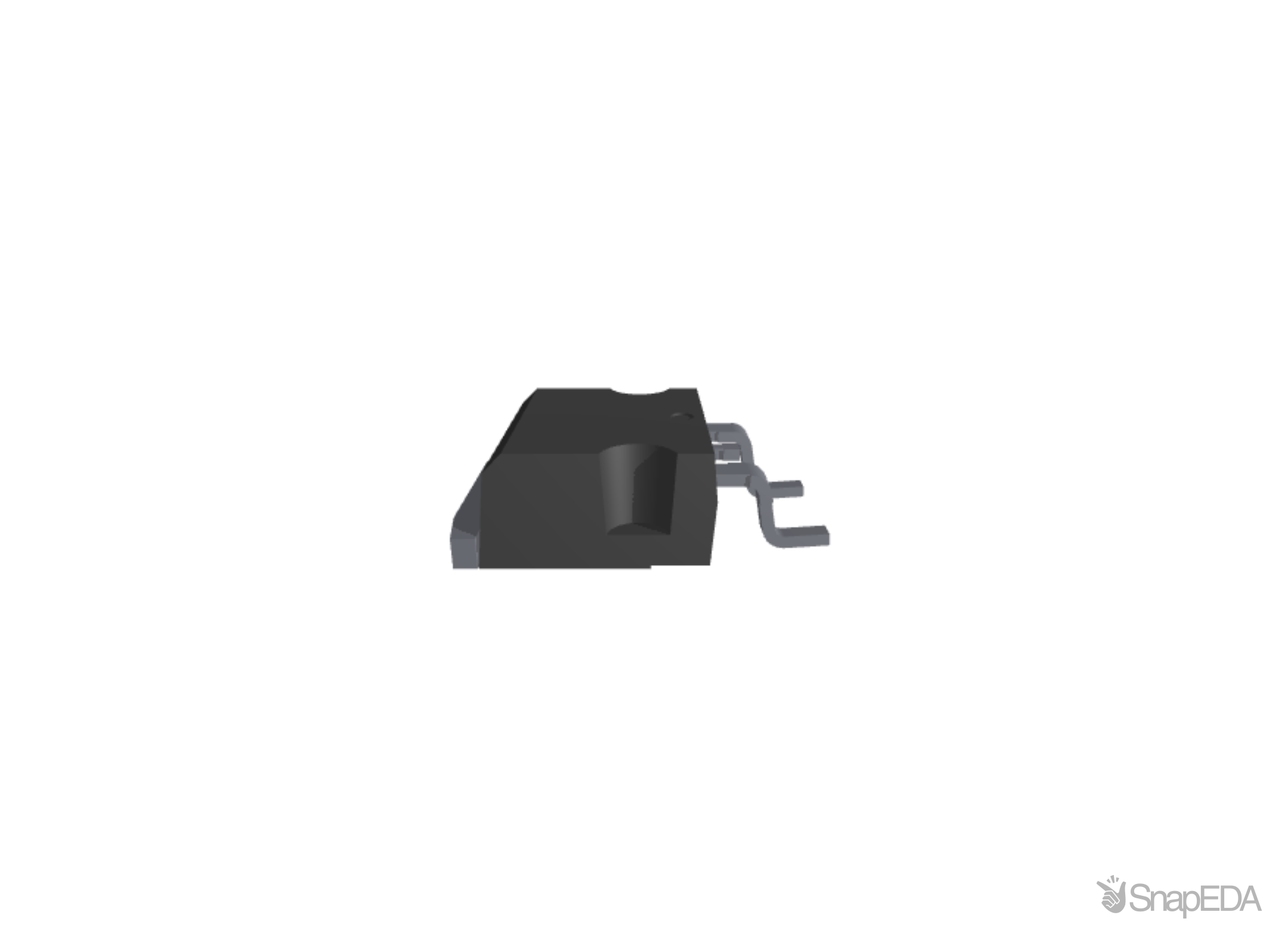

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L7812
| Part Name | L7812 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 100 mV |
| Dimensions | 10.4 x 4.6 x 9.15 (mm) |
| Mounting Type | Through Hole |
| Quiescent Current (A) | 4.4 (mA) |
| Maximum Operating Temperature | +125 °C |
| Regulator Type | Linear Voltage |
| Output Type | Fixed |
| Height | 9.15 (mm) |
| Width | 4.6 (mm) |
| Length | 10.4 (mm) |
| Output Voltage (V) | 12 V |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40 °C |
| Accuracy | 2 (%) |
| Maximum Output Current (A) | 1 (A) |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 35 V |
| Line Regulation | 120 mV |
Inventory for the L7812 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
23,000
|
3,195 x $0.11
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the L7812
