L7824CV
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220
Availability: Out of Stock
Package Type: TO-220-3

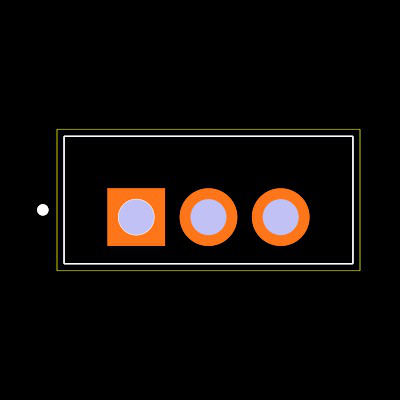

CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L7824CV by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for

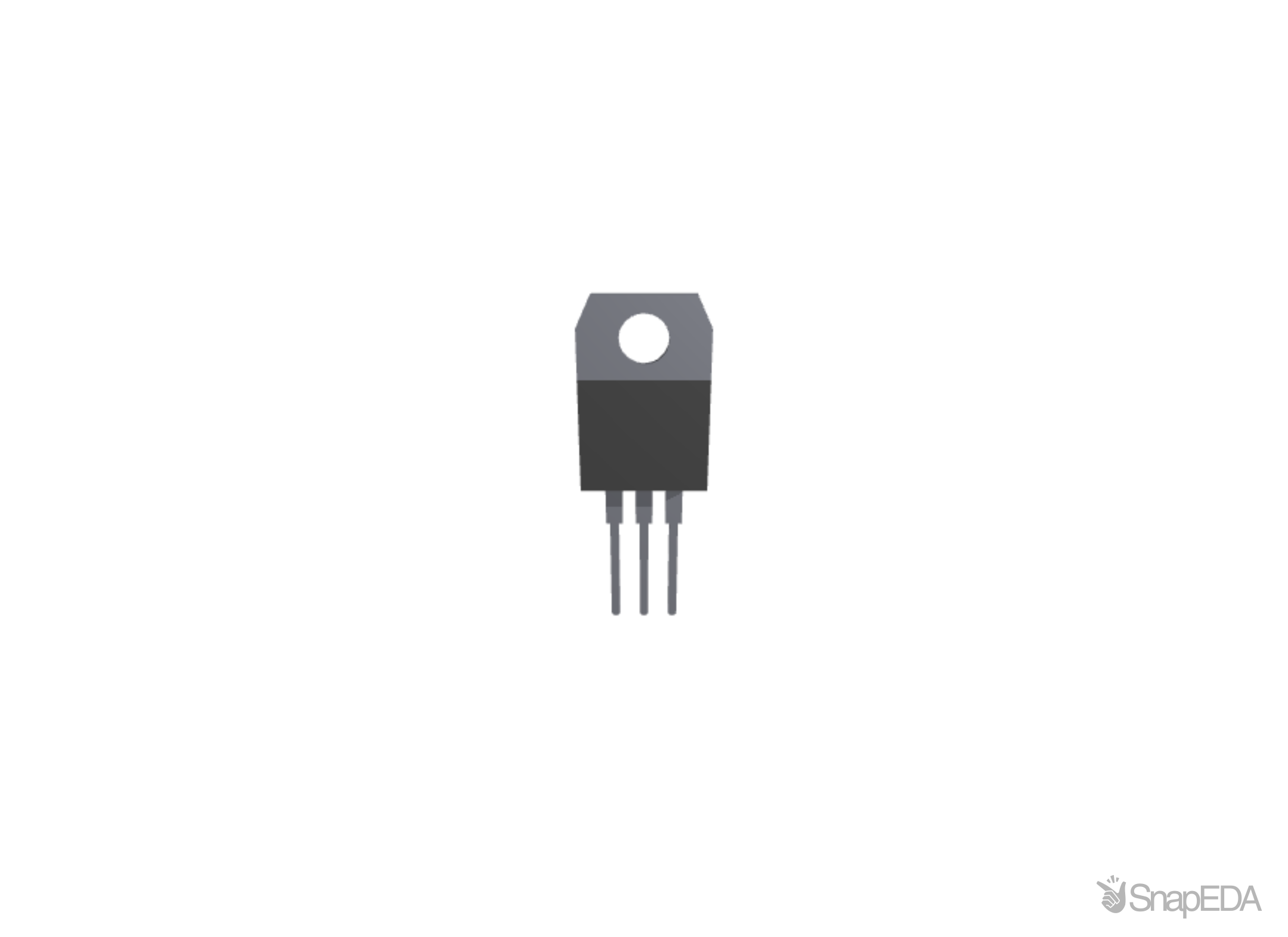

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L7824CV
| Part Name | L7824CV |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 480 mV |
| Dimensions | 10.4 x 4.6 x 9.15 (mm) |
| Line Regulation | 480 mV |
| Maximum Output Current (A) | 1.5 (A) |
| Regulator Type | Linear Voltage |
| Output Type | Fixed |
| Height | 9.15 (mm) |
| Width | 4.6 (mm) |
| Length | 10.4 (mm) |
| Output Voltage (V) | 24 V |
| Package Type | TO-220 |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Through Hole |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 40 V |
| Quiescent Current (A) | 8 (mA) |
