L78S18CV
Linear Voltage Regulator IC Positive Fixed 1 Output 2A TO-220AB
Availability: In Stock
Package Type: TO-220-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the L78S18CV by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

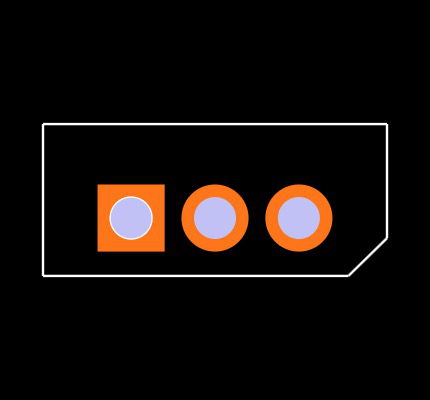

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the L78S18CV
| Part Name | L78S18CV |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 360 mV |
| Dimensions | 10.4 x 4.6 x 9.15 (mm) |
| Mounting Type | Through Hole |
| Quiescent Current (A) | 8 (mA) |
| Maximum Operating Temperature | +150 °C |
| Regulator Type | Linear Voltage |
| Output Type | Fixed |
| Height | 9.15 (mm) |
| Width | 4.6 (mm) |
| Length | 10.4 (mm) |
| Output Voltage (V) | 18 V |
| Package Type | TO-220 |
| Minimum Operating Temperature | 0 °C |
| Minimum Input Voltage (V) | 21 V |
| Maximum Output Current (A) | 2 (A) |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 35 V |
| Line Regulation | 360 mV |
Inventory for the L78S18CV by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
2,000 x $0.50
|
Visit Site | |
|
★ Featured
|
450
|
1,085 x $0.32
|
Visit Site | |
| Arrow Electronics |
587
|
1 x $0.26
|
Visit Site | |
| Newark |
45
|
|
Visit Site | |
| Verical |
587
|
22 x $0.26
|
Visit Site |
No issues have been reported for the L78S18CV
If you experienced any issues with the symbol or footprint, please report it.
