LA-601AB

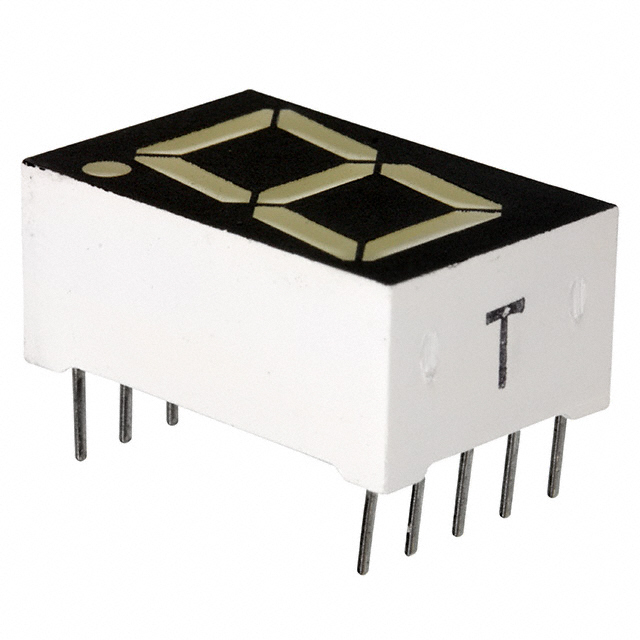

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2.05V 10mA 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm) 10-DIP (0.400", 10.16mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LA-601AB by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LA-601AB
| Part Name | LA-601AB |
| Manufacturer | Rohm |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dominant Wavelength | 626 nm |
| Number Of Segments | 7 |
| Forward Current (A) | 25 (mA) |
| Common Connection | Anode |
| Forward Voltage (V) | 2.05 V |
| External Depth | 8 (mm) |
| Character Width | 8.3 (mm) |
| Luminous Intensity | 90 mcd |
| Maximum Operating Temperature | +75 (°C) |
| Operating Temperature Range | -25 → +75 (°C) |
| Character Height | 14.6 (mm) |
| Led Colour S | Red |
| External Dimensions | 19 x 12.5 x 8 (mm) |
| Display Type | 7-Segment |
| Colour Of Face | Black |
| Mounting Type | Through Hole |
| Number Of Characters | 1 |
| Power Dissipation | 520 (mW) |
| Minimum Operating Temperature | -25 (°C) |
| Decimal Orientation | Right Side |
| External Height | 19 (mm) |
| External Width | 12.5 (mm) |
