LAN7500-ABZJ
Microchip LAN7500-ABZJ, Ethernet Controller, 1000Mbit/s, USB, 3.3 V, 56-Pin QFN | Microchip Technology Inc. LAN7500-ABZJ
Availability: In Stock
Package Type: QFN-56
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LAN7500-ABZJ by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

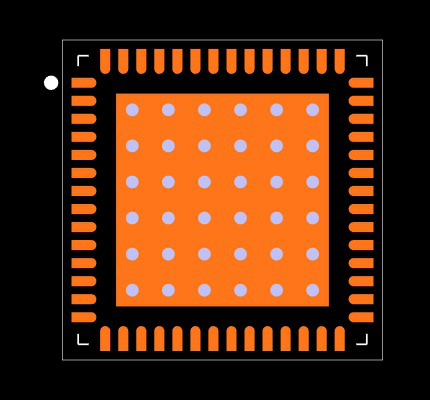

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LAN7500-ABZJ
| Part Name | LAN7500-ABZJ |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Network Interface | 1000BaseT, 100BaseTX, 10BaseT |
| Dimensions | 8.15 x 8.15 x 0.95 (mm) |
| Auto Negotiation | Yes |
| Ic Type | Controller IC |
| Loopback Mode | External, Internal |
| Typical Operating Supply Voltage (V) | 3.3 V |
| Host Interface | USB |
| Package Type | QFN |
| Minimum Operating Temperature | 0 °C |
| Data Rate | 1000 (Mbps) |
| Mounting Type | Surface Mount |
| Physical Network Type | 1000BaseT, 100BaseTX, 10BaseT |
| Standard Supported | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 56 |
| Communication Mode | Full Duplex, Half Duplex |
Inventory for the LAN7500-ABZJ by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,462
|
|
Visit Site | |
|
★ Featured
|
14,574
|
75 x $4.04
|
Visit Site | |
| Arrow Electronics |
39
|
1 x $5.61
|
Visit Site | |
| Onlinecomponents |
1,512
|
|
Visit Site | |
| Verical |
39
|
2 x $5.61
|
Visit Site |
No issues have been reported for the LAN7500-ABZJ
