LAN8740AI-EN
Ethernet Trans 10/100 MII/RMII SQFN | Microchip Technology Inc. LAN8740AI-EN
Availability: In Stock
Package Type: VFQFN-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LAN8740AI-EN by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

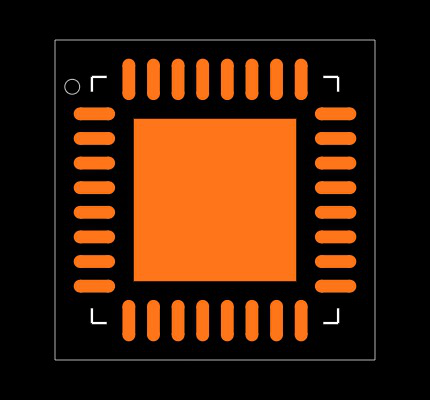

Footprint
No web preview
This Footprint is Available for

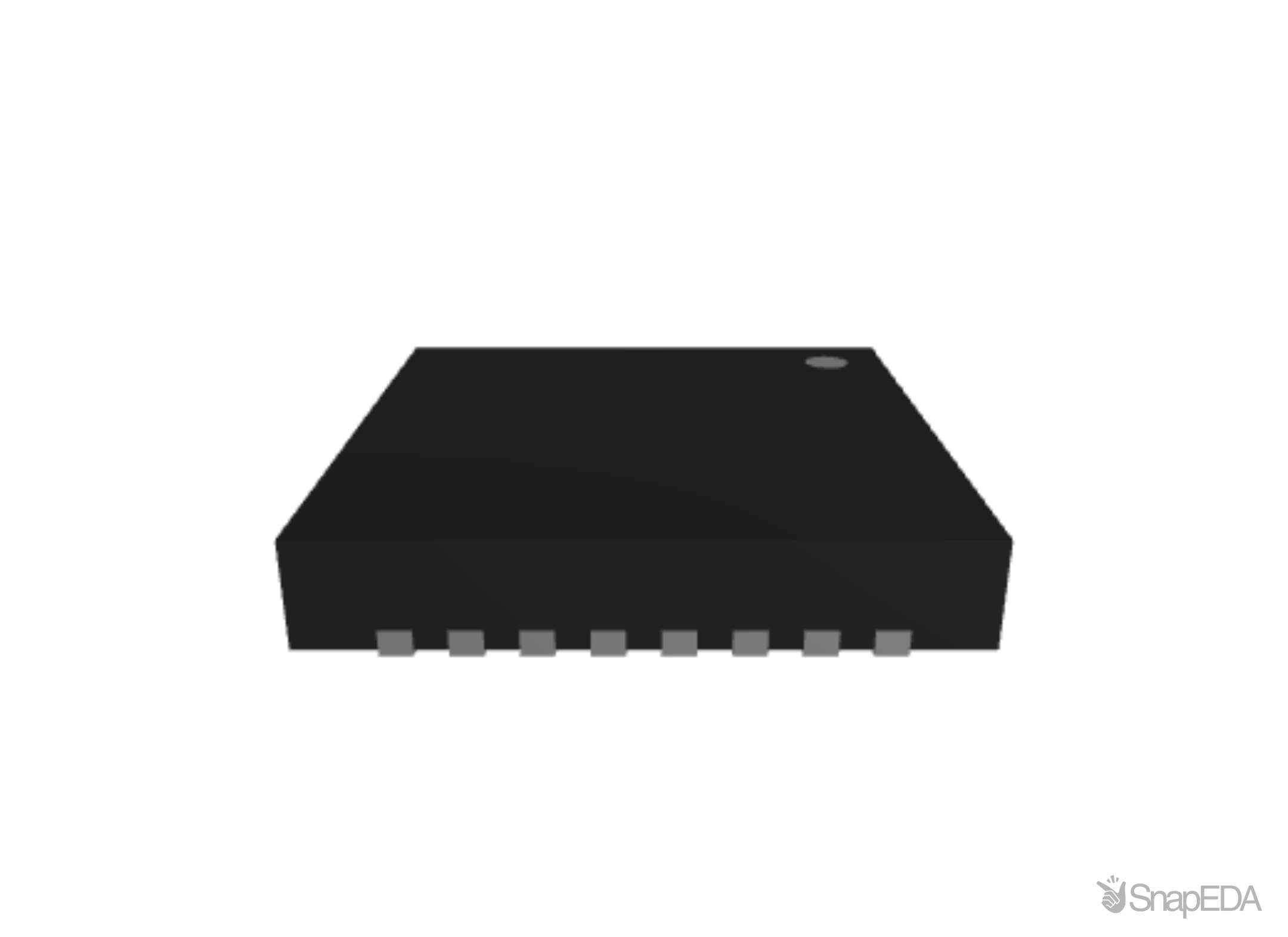

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LAN8740AI-EN
| Part Name | LAN8740AI-EN |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 5.1 x 5.1 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Ic Type | Transceiver IC |
| Typical Operating Supply Voltage (V) | 1.62 to 3.6 V |
| Number Of Transceivers | 1 |
| Package Type | SQFN |
| Minimum Operating Temperature | -40 °C |
| Data Rate | 10 Mbps, 100 (Mbps) |
| Standard Supported | IEEE802.3/802.3u, ISO 802-3/IEEE802.3 |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 32 |
