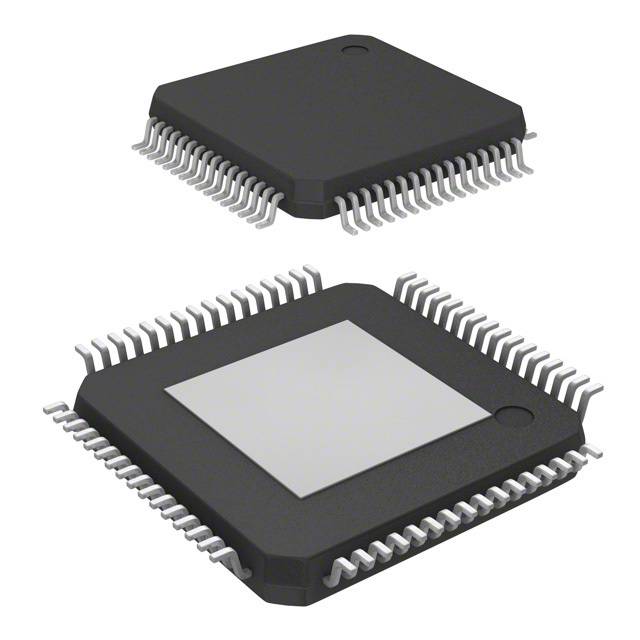

LAN9252/PT
Ethernet Controller 10/100 Base-FX/T/TX PHY SPI Interface 64-TQFP-EP (10x10)
Availability: In Stock
Package Type: TQFP-64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LAN9252/PT by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

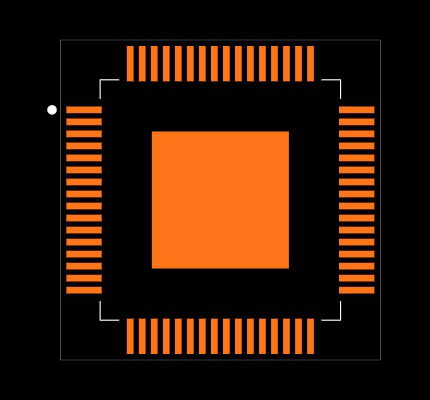

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LAN9252/PT
| Part Name | LAN9252/PT |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Transceivers | 2 |
| Data Rate | 100 (Mbps) |
| Typical Operating Supply Voltage (V) | 3.3 V |
| Host Interface | SPI |
| Package Type | TQFP-EP |
| Ic Type | Controller IC |
| Physical Network Type | 100BASE-FX, 100BASE-TX |
| Pin Count | 64 |
| Communication Mode | Full Duplex, Half Duplex |
