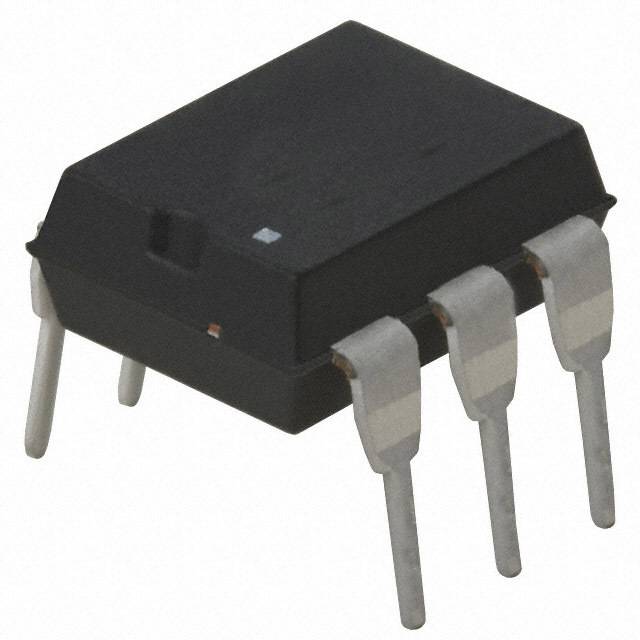

LCA710
Solid State Photo-Coupled Relay (Photorelay) SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LCA710 by IXYS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LCA710
| Part Name | LCA710 |
| Manufacturer | IXYS Integrated |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Load Current (A) | 1 A, 1.8 A |
| Output Device | MOSFET |
| Dimensions | 8.382 x 6.35 x 3.302 (mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Package Style | Small - 6 Pin |
| Relay Type | OptoMOS |
| Length | 8.4 (mm) |
| Contact Configuration | SPST |
| Off State Leakage Current (A) | 1 μA |
| Capacitance | 105 (pF) |
| Depth | 6.4 (mm) |
| Maximum Turn On Time | 2.5 (ms) |
| Minimum Operating Temperature | -40 (°C) |
| Switching Type | AC/DC |
| Special Features | Arc-Free With No Snubbing Circuits, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, Wave Solderable |
| Height | 3.3 (mm) |
| Number Of Poles | 1 |
| Terminal Type | PCB Pin |
| Standards Met | CSA, EN/IEC 60950, Certificate TUV B 09 07 49140 004, UL File E76270 |
Inventory for the LCA710 by IXYS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Newark |
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the LCA710
