LD1117AV33
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220AB
Availability: Out of Stock
Package Type: TO-220
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LD1117AV33 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

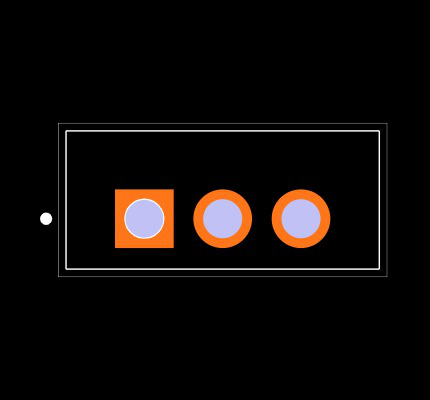

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LD1117AV33
| Part Name | LD1117AV33 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 10 mV |
| Dimensions | 10.4 x 4.6 x 9.15 (mm) |
| Line Regulation | 6 mV |
| Maximum Output Current (A) | 1.2 (A) |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 9.15 (mm) |
| Width | 4.6 (mm) |
| Length | 10.4 (mm) |
| Output Voltage (V) | 3.3 V |
| Package Type | TO-220 |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Through Hole |
| Accuracy | ±2 (%) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 10 V |
| Quiescent Current (A) | 5 (mA) |
No issues have been reported for the LD1117AV33
