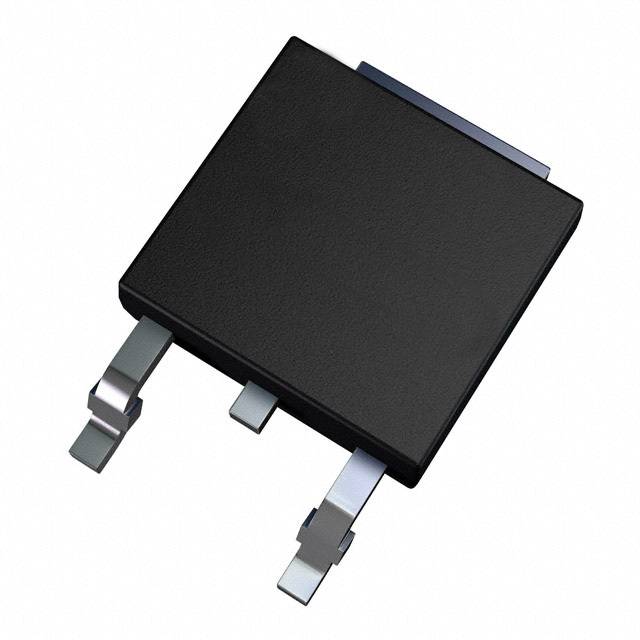

LD39150DT33-R

Name: LD39150DT33-R
Brand: STMicroelectronics

Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A DPAK

Availability: Out of Stock

Package Type: DPAK

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the LD39150DT33-R by STMicroelectronics and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

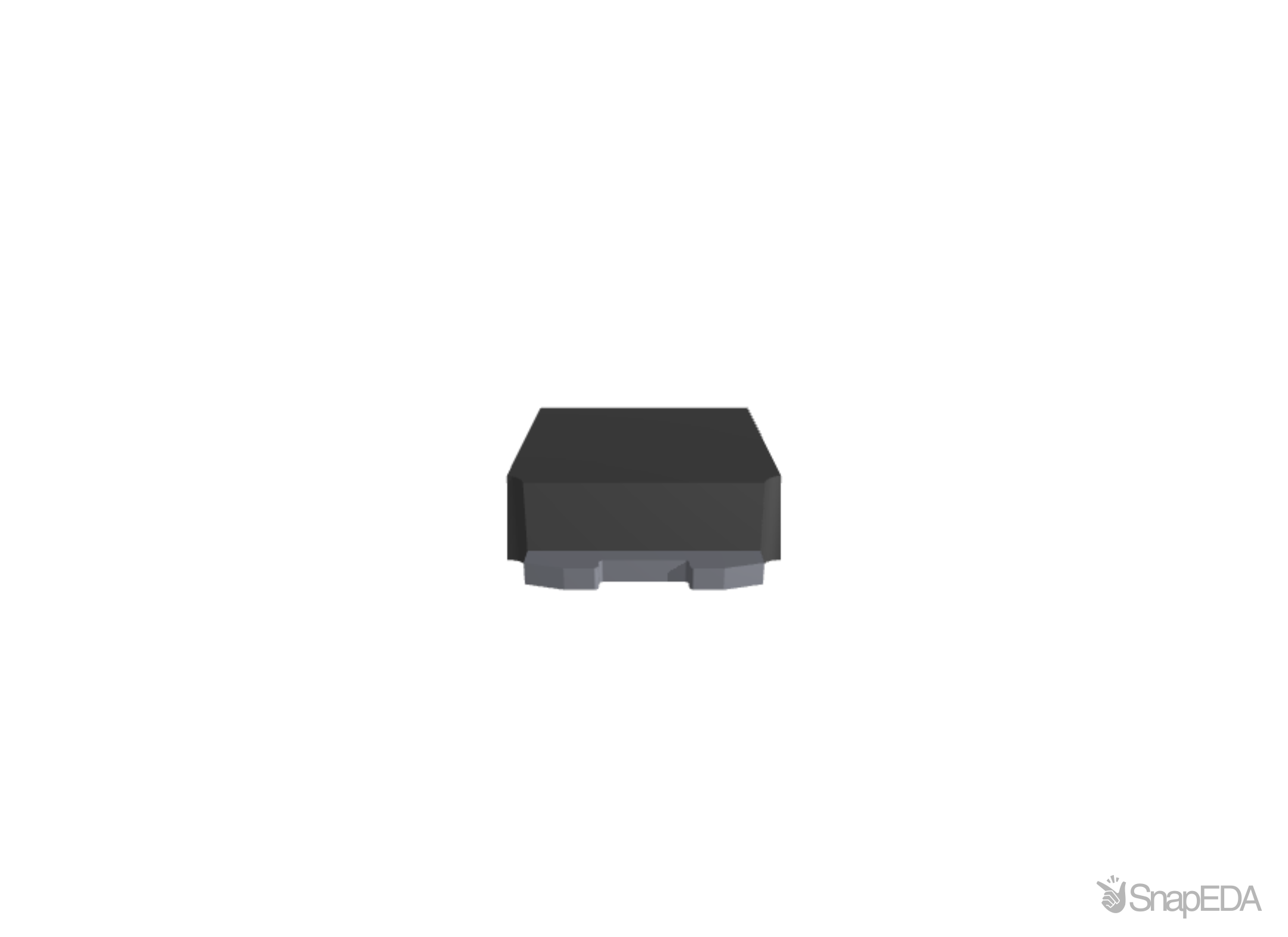

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the LD39150DT33-R

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the LD39150DT33-R

Part Name	LD39150DT33-R
Manufacturer	STMicroelectronics
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Polarity	Positive
Dimensions	6.6 x 6.2 x 2.4 (mm)
Regulator Type	Low Dropout Voltage
Width	6.2 (mm)
Reference Voltage (V)	1.22 (V)
Accuracy	±1.5 (%)
Number Of Outputs	1
Load Regulation	0.4 %/A
Output Type	Fixed
Package Type	DPAK
Maximum Operating Temperature	+125 °C
Quiescent Current (A)	2.5 (On) mA, 5 (Off) μA
Line Regulation	0.2 %
Length	6.6 (mm)
Pin Count	3
Mounting Type	Surface Mount
Height	2.4 (mm)
Output Voltage (V)	3.3 V
Minimum Operating Temperature	-40 °C
Maximum Output Current (A)	1.5 (A)
Maximum Input Voltage (V)	6 V
Minimum Input Voltage (V)	2.5 V

We could not find inventory or pricing across major distributors for the LD39150DT33-R by STMicroelectronics.
