LF33ABDT-TR

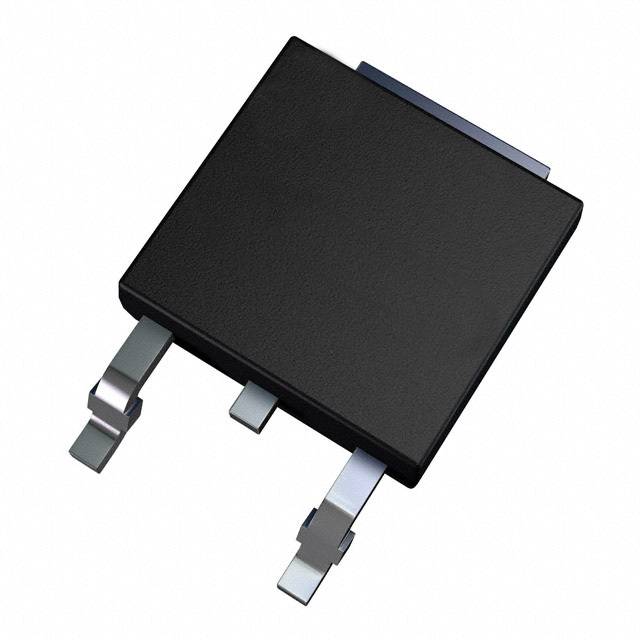

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK
Availability: In Stock
Package Type: TO-252
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LF33ABDT-TR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LF33ABDT-TR
| Part Name | LF33ABDT-TR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 16 mV |
| Dimensions | 6.6 x 6.2 x 2.4 (mm) |
| Mounting Type | Surface Mount |
| Quiescent Current (A) | 0.5 (mA) |
| Maximum Operating Temperature | +125 °C |
| Regulator Type | Low Dropout Voltage |
| Output Type | Fixed |
| Height | 2.4 (mm) |
| Width | 6.2 (mm) |
| Length | 6.6 (mm) |
| Output Voltage (V) | 3.3 V |
| Package Type | DPAK |
| Minimum Operating Temperature | -40 °C |
| Accuracy | ±1 (%) |
| Maximum Output Current (A) | 500 (mA) |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 16 V |
| Line Regulation | 16 mV |
