LFSPXO018044
50 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Availability: Out of Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LFSPXO018044 by IQD Frequency Products and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

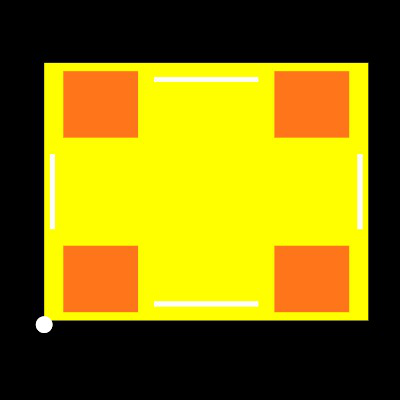

Footprint
No web preview
This Footprint is Available for

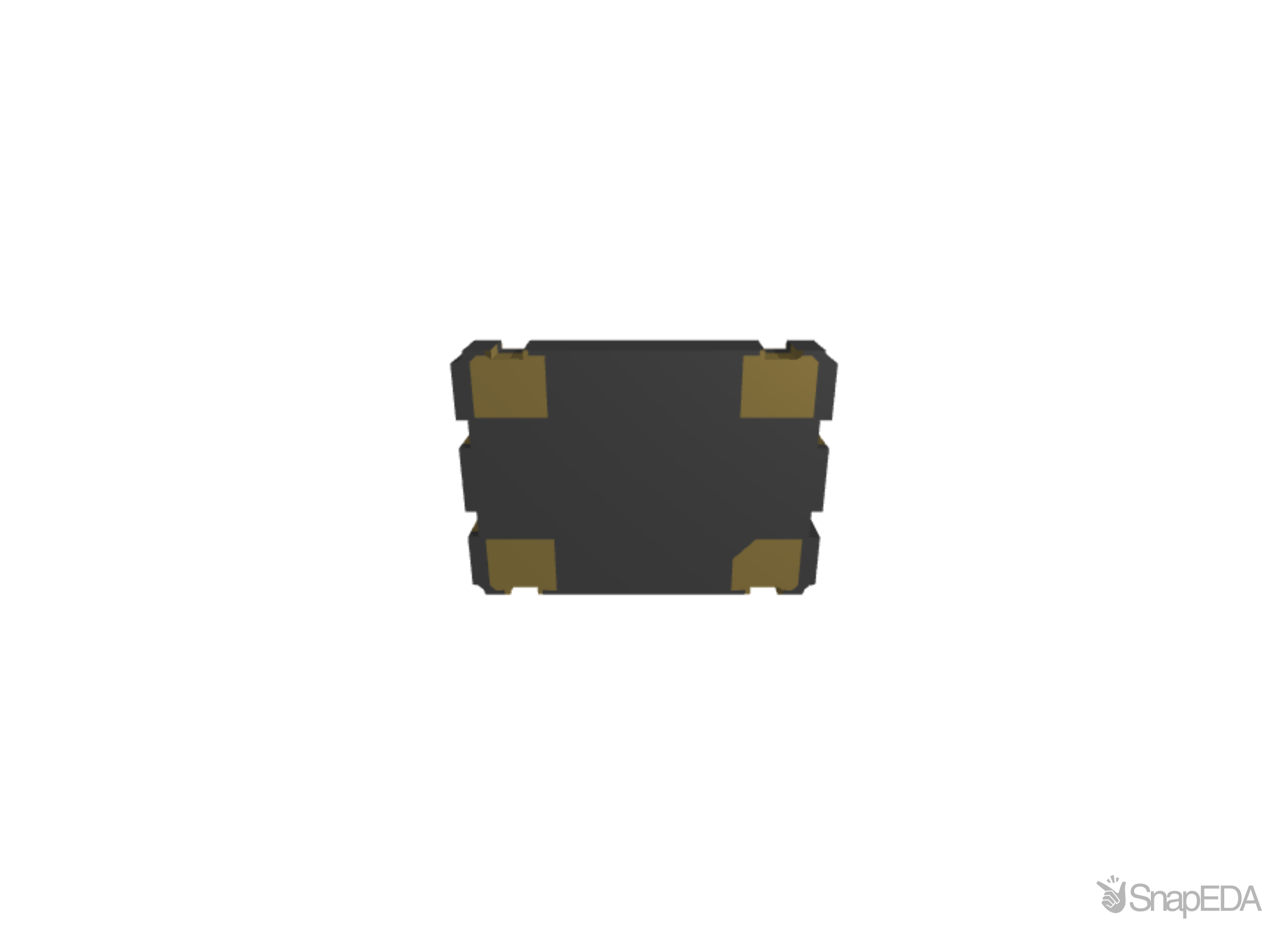

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LFSPXO018044
| Part Name | LFSPXO018044 |
| Manufacturer | IQD Frequency Products |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7.2 x 5.2 x 1.4 (mm) |
| Mounting Type | Surface Mount |
| Output Level | HCMOS |
| Oscillator Type | Clock |
| Height | 1.4 (mm) |
| Frequency Stability | ±50 (ppm) |
| Width | 5.2 (mm) |
| Length | 7.2 (mm) |
| Package Type | SMD |
| Output Frequency | 50 (MHz) |
| Minimum Operating Temperature | 0 (°C) |
| Maximum Operating Temperature | 70 (°C) |
