LFSPXO020466
CRYSTAL OSCILLATOR, SMD, 16.384MHZ; Frequency Nom:16.384MHz; Frequency Stability + / -:50ppm; Oscillator Case:SMD, 7mm x 5mm; Supply Voltage Nom:3.3V; Product Range:-; Operating Temperature Min:0°C; Operating Temperature Max:70°C; Oscillator Output Compatibility:HCMOS; SVHC:No SVHC (15-Jan-2018); Accuracy:± 50ppm; Crystal Case:CFPS-73; Duty Cycle (%):55%; Duty Cycle Lower Limit:45%; Duty Cycle Upper Limit:55%; Fall Time tf:6ns; Frequency:16.384MHz; Frequency Accuracy + @:50ppm; Frequency Accuracy - @:50ppm; Frequency Stability:± 50ppm; Load Capacitance:15pF; No. of Pins:4Pins; Operating Temperature Range:0°C to +70°C; Output Drive Level:HCMOS; Output Frequency:16.384MHz; Resonator Case:SMD; Rise Time:6ns; Supply Current Max:15mA; Supply Voltage Max:3.6V; Supply Voltage Min:3V; Temperature Stability + @:50ppm; Temperature Stability - @:50ppm; Temperature Stabilty:± 50ppm; Type:SPXO
Availability: In Stock

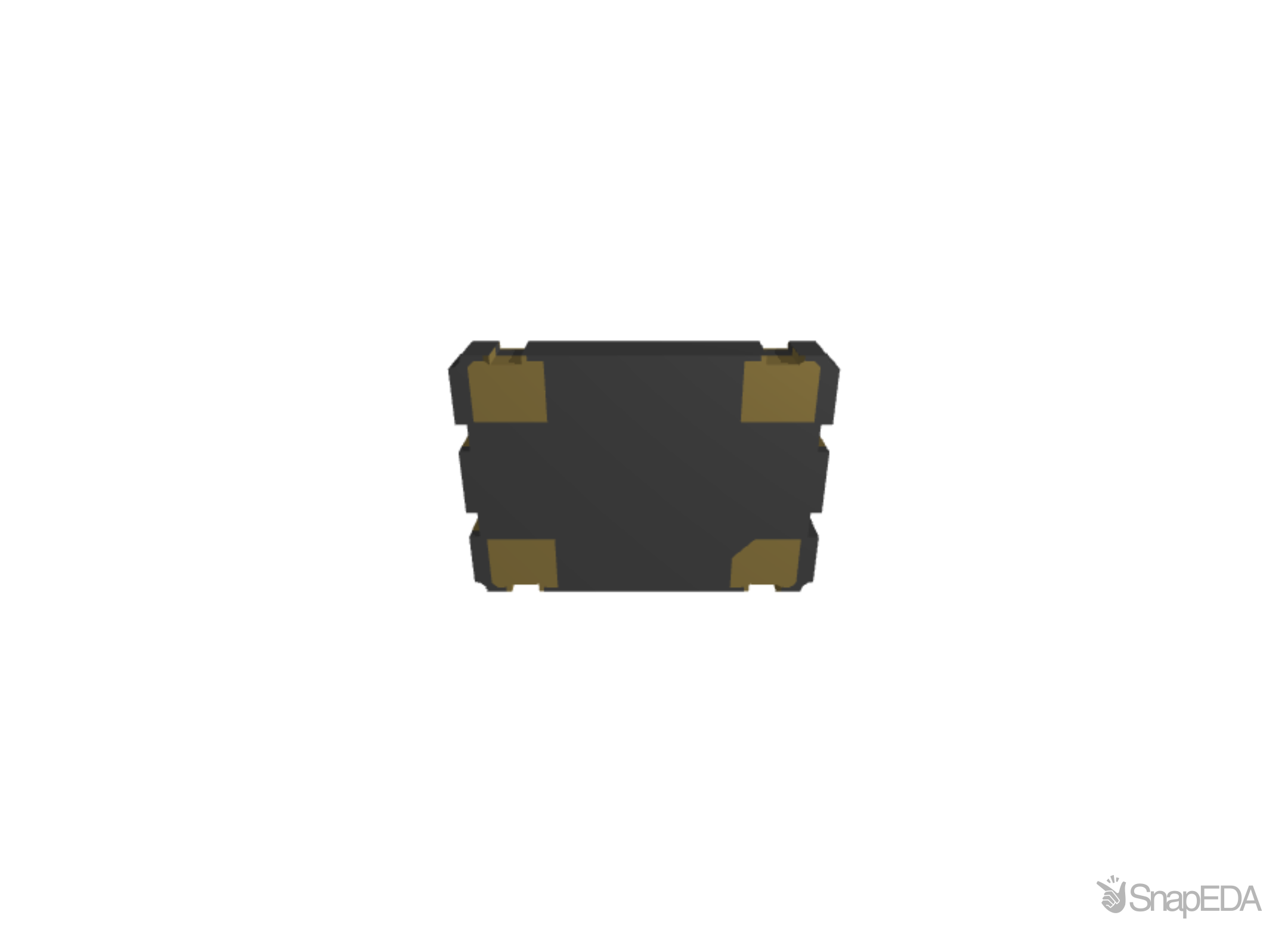

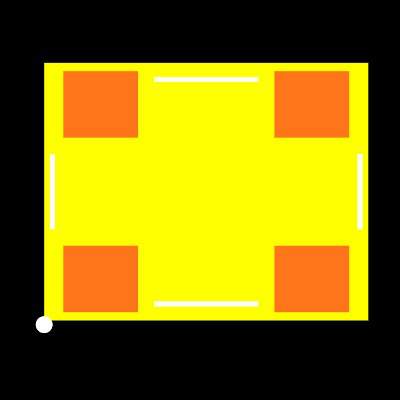

CAD Models: Symbol, Footprint, 3D Model
