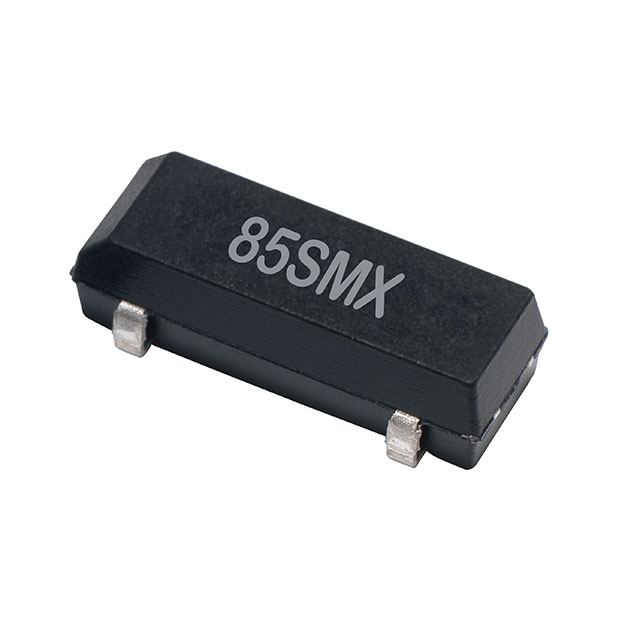

LFXTAL003000
32.768 kHz ±20ppm Crystal 12.5pF 50 kOhms 4-SOJ, 5.50mm pitch
Availability: Out of Stock
Package Type: 4-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LFXTAL003000 by IQD Frequency Products and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LFXTAL003000
| Part Name | LFXTAL003000 |
| Manufacturer | IQD Frequency Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Series Resistance | 50 (kΩ) |
| Frequency Tolerance | ±20 (ppm) |
| Dimensions | 8.7 x 3.7 x 2.5 (mm) |
| Mounting Type | Surface Mount |
| Height | 2.5 (mm) |
| Width | 3.7 (mm) |
| Length | 8.7 (mm) |
| Package Type | Cylinder |
| Pin Count | 4 |
| Maximum Operating Temperature | 85 (°C) |
| Load Capacitance | 12.5 (pF) |
| Standard Frequency | 32.768 (kHz) |
No issues have been reported for the LFXTAL003000
