LFXTAL003071
4 MHz ±30ppm Crystal 16pF 130 Ohms HC-49/US
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LFXTAL003071 by IQD Frequency Products and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

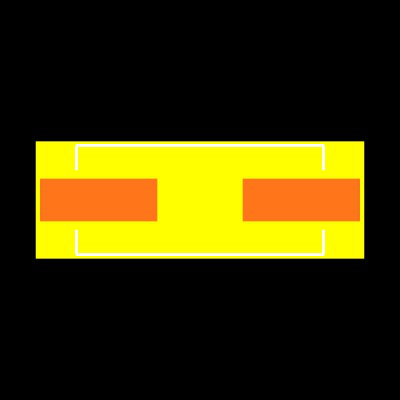

Footprint
No web preview
This Footprint is Available for

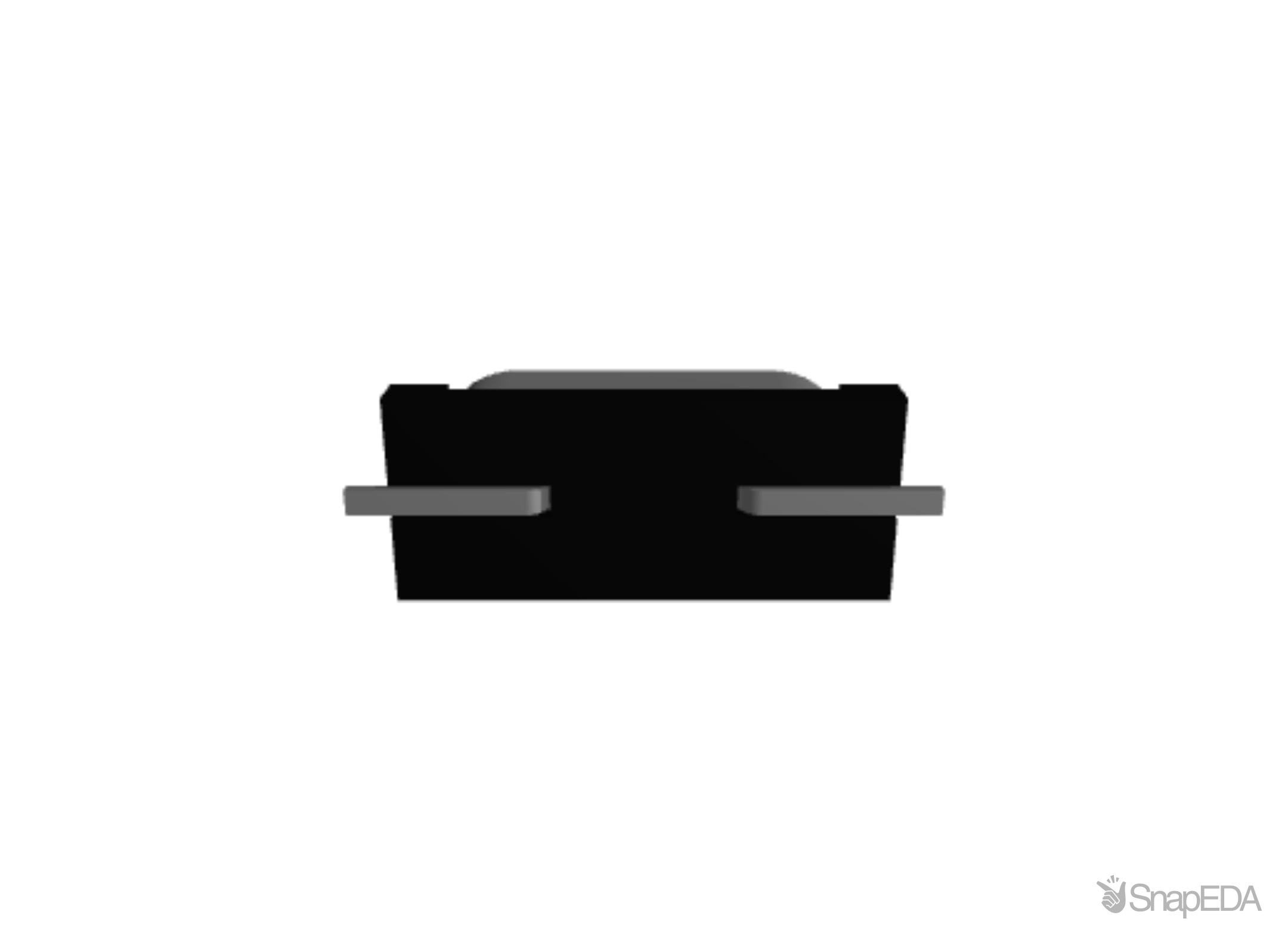

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LFXTAL003071
| Part Name | LFXTAL003071 |
| Manufacturer | IQD Frequency Products |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 2 |
| Series Resistance | 130 (Ω) |
| Frequency Tolerance | ±30 (ppm) |
| Dimensions | 11.4 x 4.9 x 4.3 (mm) |
| Mounting Type | Surface Mount |
| Height | 4.3 (mm) |
| Frequency Stability | ±50 (ppm) |
| Width | 4.9 (mm) |
| Length | 11.4 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -10 (°C) |
| Maximum Operating Temperature | 60 (°C) |
| Load Capacitance | 16 (pF) |
| Standard Frequency | 4 (MHz) |
Inventory for the LFXTAL003071 by IQD Frequency Products from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
8,068
|
|
Visit Site | |
| Newark |
8,168
|
|
Visit Site | |
| RS UK |
150
|
|
Visit Site | |
| element14 Singapore |
8,068
|
|
Visit Site |
No issues have been reported for the LFXTAL003071
If you experienced any issues with the symbol or footprint, please report it.
