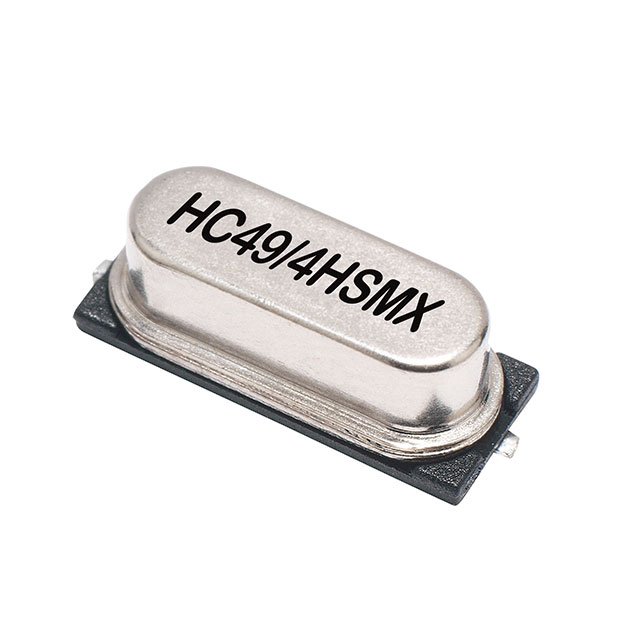

LFXTAL003151
8 MHz ±30ppm Crystal 16pF 40 Ohms HC-49/US
Availability: Out of Stock
Package Type: HC-49/US
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LFXTAL003151 by IQD Frequency Products and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

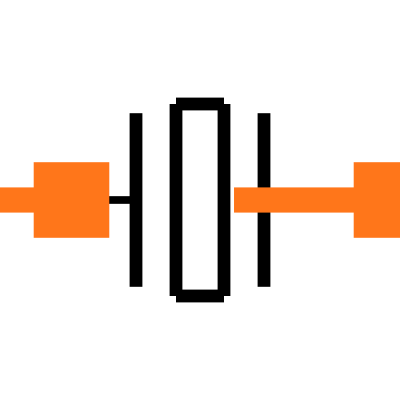

Symbol
No web preview
This Symbol is Available for

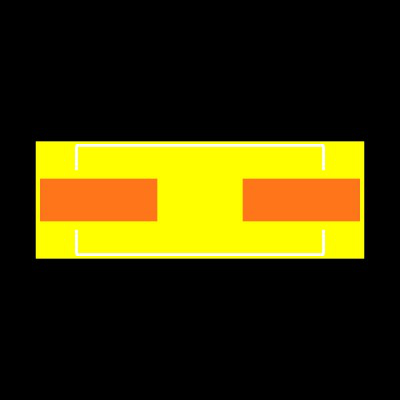

Footprint
No web preview
This Footprint is Available for

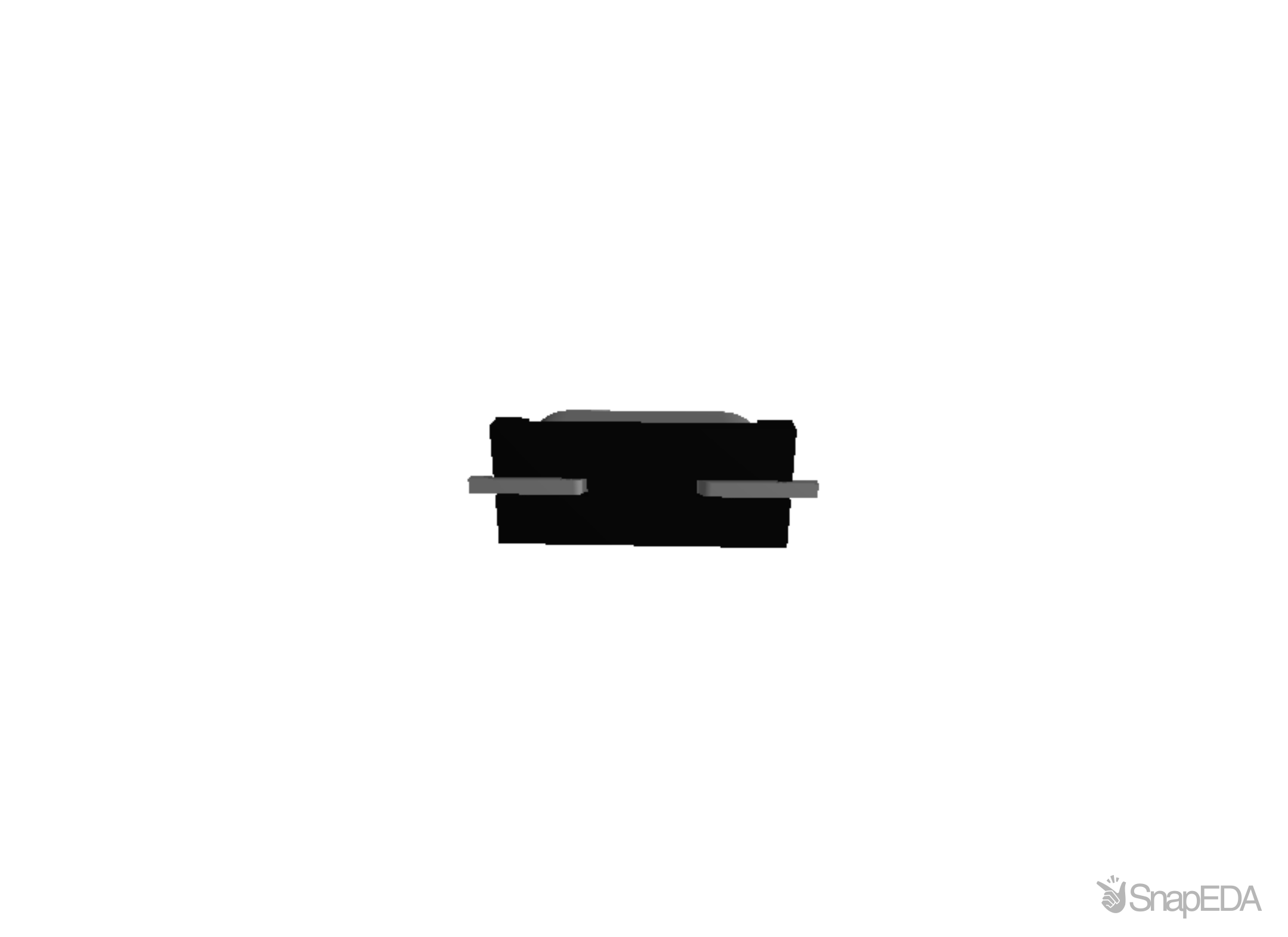

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LFXTAL003151
| Part Name | LFXTAL003151 |
| Manufacturer | IQD Frequency Products |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 2 |
| Series Resistance | 40 (Ω) |
| Frequency Tolerance | ±30 (ppm) |
| Dimensions | 11.4 x 4.9 x 4.3 (mm) |
| Mounting Type | Surface Mount |
| Height | 4.3 (mm) |
| Frequency Stability | ±50 (ppm) |
| Width | 4.9 (mm) |
| Length | 11.4 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -10 (°C) |
| Maximum Operating Temperature | 60 (°C) |
| Load Capacitance | 16 (pF) |
| Standard Frequency | 8 (MHz) |
No issues have been reported for the LFXTAL003151
If you experienced any issues with the symbol or footprint, please report it.
