LFXTAL026380
8MHz ±30ppm Crystal 16pF 80 Ohms 4-SMD, No Lead
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LFXTAL026380 by IQD Frequency Products and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

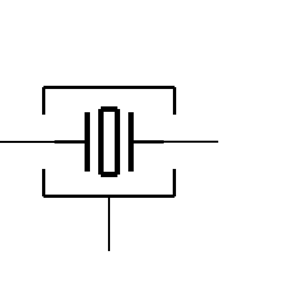

Symbol
No web preview
This Symbol is Available for

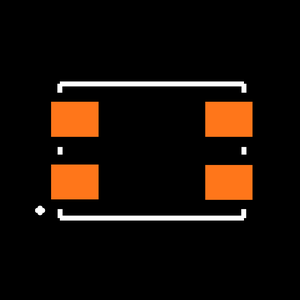

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LFXTAL026380
| Part Name | LFXTAL026380 |
| Manufacturer | IQD Frequency Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Series Resistance | 80 (Ω) |
| Frequency Tolerance | ±30 (ppm) |
| Dimensions | 7.5 x 5.2 x 1.4 (mm) |
| Mounting Type | Surface Mount |
| Height | 1.4 (mm) |
| Frequency Stability | ±50 (ppm) |
| Width | 5.2 (mm) |
| Length | 7.5 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -20 (°C) |
| Load Capacitance | 16 (pF) |
| Maximum Operating Temperature | 70 (°C) |
| Pin Count | 4 |
| Standard Frequency | 8 (MHz) |
Inventory for the LFXTAL026380 by IQD Frequency Products from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,350
|
|
Visit Site |
No issues have been reported for the LFXTAL026380
