LFXTAL035268
CRYSTAL, CFPX-180, 25M, SMD 3.2X2.5; Frequency:25MHz; Frequency Tolerance:± 50ppm; Load Capacitance:16pF; Frequency Stability:± 50ppm; Operating Temperature Range:-10°C to +60°C; Crystal Mounting Type:SMD; Crystal Case Type:CFPX-180; No. of Pins:4; SVHC:No SVHC (20-Jun-2011); Frequency Accuracy + @:50ppm; Frequency Accuracy - @:50ppm; Output Frequency:25MHz; Series:CFPX-180; Temperature Stability + @:50ppm; Temperature Stability - @:50ppm; Termination Type:SMD
Availability: In Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LFXTAL035268 by IQD Frequency Products and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

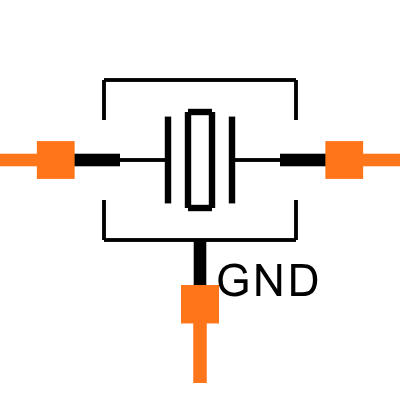

Symbol
No web preview
This Symbol is Available for

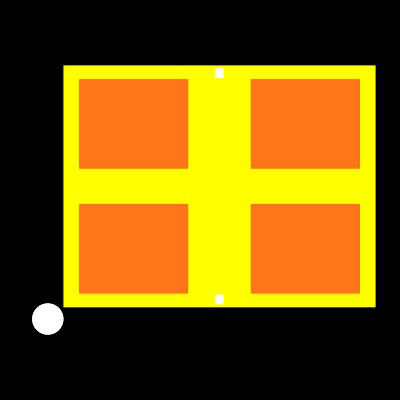

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LFXTAL035268
| Part Name | LFXTAL035268 |
| Manufacturer | IQD Frequency Products |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series Resistance | 50 (Ω) |
| Frequency Tolerance | ±50 (ppm) |
| Dimensions | 3.4 x 2.7 x 0.8 (mm) |
| Mounting Type | Surface Mount |
| Height | 0.8 (mm) |
| Frequency Stability | ±50 (ppm) |
| Width | 2.7 (mm) |
| Length | 3.4 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -10 (°C) |
| Load Capacitance | 16 (pF) |
| Maximum Operating Temperature | 60 (°C) |
| Pin Count | 4 |
| Standard Frequency | 25 (MHz) |
Inventory for the LFXTAL035268 by IQD Frequency Products from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,885
|
|
Visit Site |
No issues have been reported for the LFXTAL035268
If you experienced any issues with the symbol or footprint, please report it.
