LLL215R71E223MA11L
SMD Capacitor X7R(EIA) with Capacitance: 22000pF Tol. 20%. Rated Voltage: 25Vdc
Availability: In Stock
Package Type: 1220
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LLL215R71E223MA11L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

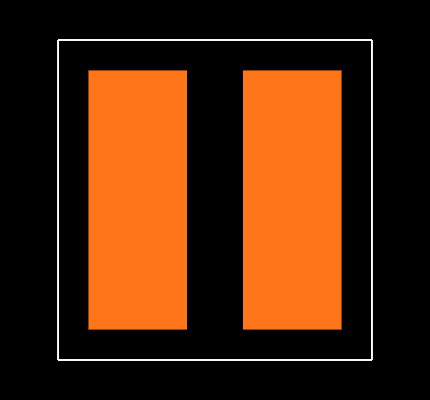

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LLL215R71E223MA11L
| Part Name | LLL215R71E223MA11L |
| Manufacturer | Murata |
| Category | Capacitor |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22LLL215R71E223MA11L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Mounting Style | SMD |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=LLL215R71E223MA11%23 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 1.25 x 2 x 0.5 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0805 (2012M) |
| Series | LLx |
| Depth | 2 (mm) |
| Height | 0.5 (mm) |
| Capacitance | 22 (nF) |
| Length | 1.25 (mm) |
| Voltage (V) | 25 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Terminal Type | Surface Mount |
| Dielectric | X7R |
Inventory for the LLL215R71E223MA11L by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
1,056
|
|
Visit Site | |
| Farnell UK |
|
4,000 x $0.10
|
Visit Site |
No issues have been reported for the LLL215R71E223MA11L
