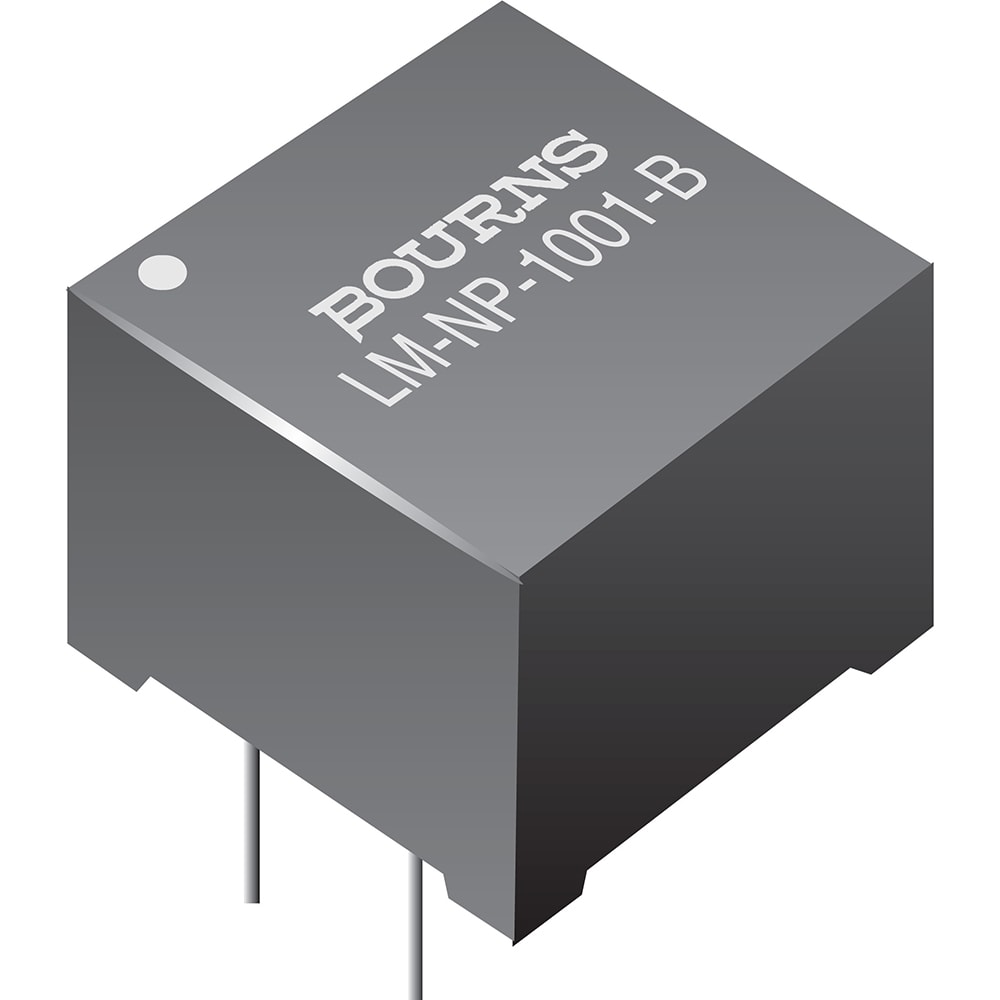

LM-NP-1001-B1L
Transformer Line Matching 66 OHM DCR +/-10% 2.8H MIN @ 0.2KHZ | Bourns LM-NP-1001-B1L
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM-NP-1001-B1L by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM-NP-1001-B1L
| Part Name | LM-NP-1001-B1L |
| Manufacturer | Bourns |
| Category | Power Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Primary Dc Resistance | 66 (Ω) |
| Maximum Temperature | +60 (°C) |
| Dimensions | 17.7 x 17.7 x 12.6 (mm) |
| Mounting Type | Through Hole |
| Minimum Temperature | -10 (°C) |
| Primary Impedance | 600 (Ω) |
| Length | 17.7 (mm) |
| Maximum Operating Frequency | 3.5 (kHz) |
| Width | 17.7 (mm) |
| Depth | 12.6 (mm) |
| Minimum Operating Frequency | 200 (Hz) |
| Turns Ratio | 1:1 |
| Secondary Impedance | 600 (Ω) |
| Secondary Dc Resistance | 66 (Ω) |
Inventory for the LM-NP-1001-B1L by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,354
|
|
Visit Site | |
|
★ Featured
|
4,610
|
|
Visit Site | |
|
★ Featured
|
3,300
|
265 x $1.33
|
Visit Site | |
| Arrow Europe |
3,602
|
|
Visit Site | |
| Onlinecomponents |
186
|
|
Visit Site | |
| RS Americas |
28
|
|
Visit Site | |
| Verical |
16
|
5 x $2.04
|
Visit Site |
No issues have been reported for the LM-NP-1001-B1L
