LM1084IT-ADJ/NOPB
5.5-A, 29-V, linear voltage regulator
Availability: In Stock
Package Type: TO-220-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM1084IT-ADJ/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

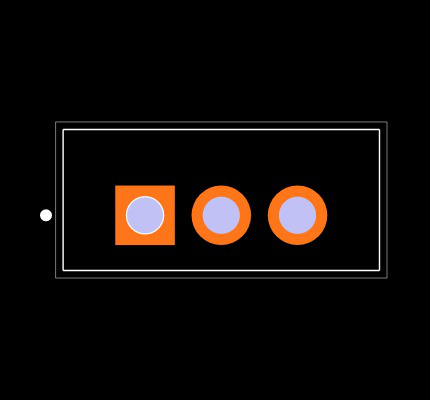

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM1084IT-ADJ/NOPB
| Part Name | LM1084IT-ADJ/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.3 % |
| Dimensions | 10.16 x 4.7 x 8.89 (mm) |
| Mounting Type | Through Hole |
| Maximum Output Current (A) | 5 (A) |
| Reference Voltage (V) | 1.262 (V) |
| Line Regulation | 0.2 % |
| Regulator Type | Low Dropout Voltage |
| Output Type | Adjustable |
| Height | 8.89 (mm) |
| Width | 4.7 (mm) |
| Length | 10.16 (mm) |
| Output Voltage (V) | 1.2 → 15 V |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 29 V |
| Minimum Input Voltage (V) | 2.6 V |
Inventory for the LM1084IT-ADJ/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
11,086
|
107 x $2.81
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Texas Instruments |
42,707
|
|
Visit Site |
No issues have been reported for the LM1084IT-ADJ/NOPB
If you experienced any issues with the symbol or footprint, please report it.
