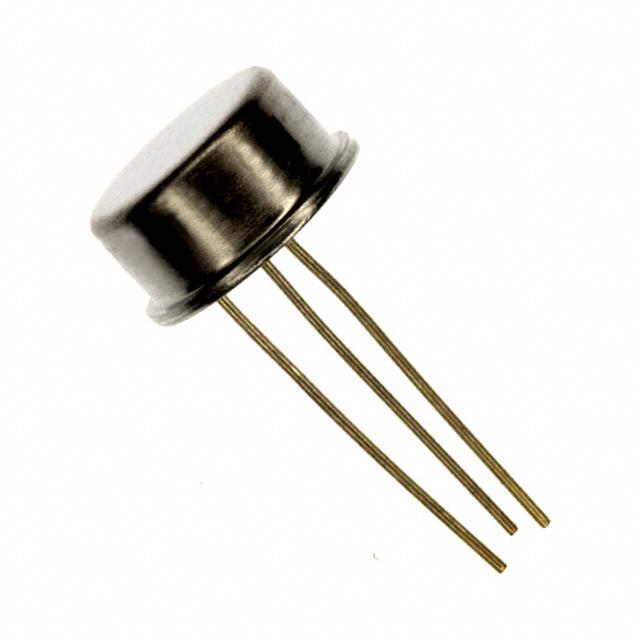

LM117H/NOPB
Extended Temperature 1.5A Adjustable Linear Regulator with Short Circuit Protection
Availability: In Stock
Package Type: TO-CAN-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM117H/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM117H/NOPB
| Part Name | LM117H/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.3 % |
| Dimensions | 9.14 x 9.14 x 4.45 (mm) |
| Mounting Type | Through Hole |
| Maximum Output Current (A) | 500 (mA) |
| Reference Voltage (V) | 1.3 (V) |
| Line Regulation | 0.02 %/V |
| Regulator Type | Linear Voltage |
| Output Type | Adjustable |
| Height | 4.45 (mm) |
| Priced To Clear | Yes |
| Width | 9.14 (mm) |
| Length | 9.14 (mm) |
| Output Voltage (V) | 1.2 → 37 V |
| Package Type | TO-39 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 40 V |
| Minimum Input Voltage (V) | 4.2 V |
Inventory for the LM117H/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
500 x $16.23
|
Visit Site | |
|
★ Featured
|
860
|
5 x $65.96
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Texas Instruments |
15,493
|
|
Visit Site |
No issues have been reported for the LM117H/NOPB
