LM148J/PB
Quad, 44-V, 1-MHz operational amplifier
Availability: In Stock
Package Type: CDIP-14

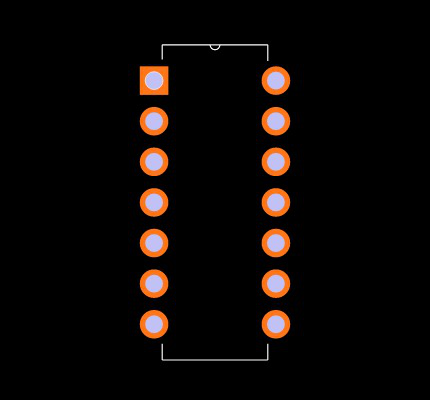

CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM148J/PB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM148J/PB
| Part Name | LM148J/PB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Dual Supply Voltage (V) | ±12 (V) |
| Typical Voltage Gain (V) | 160 dB |
| Dimensions | 19.94 x 7.62 x 3.56 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 0.5 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 4 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 1 (MHz) |
| Typical Single Supply Voltage (V) | 10 → 44 V |
| Width | 7.62 (mm) |
| Length | 19.94 (mm) |
| Package Type | CDIP |
| Minimum Operating Temperature | -55 °C |
| Amplifier Type | Low Power |
| Height | 3.56 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 14 |
