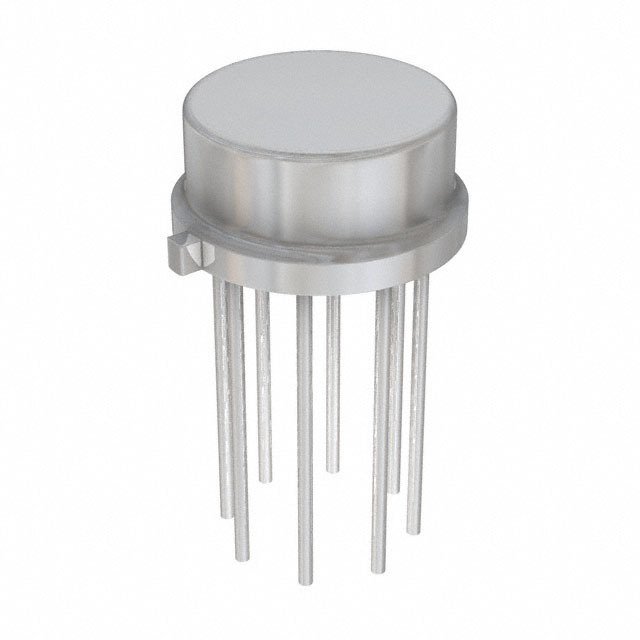

LM158H
Military-grade, dual, 32-V, 700-kHz op amp
Availability: In Stock
Package Type: TO-CAN-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM158H by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM158H
| Part Name | LM158H |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Dual Supply Voltage (V) | ±1.5 to ±16 (V) |
| Typical Voltage Gain (V) | 100 dB |
| Dimensions | 9.4 x 4.7 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 0.5 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 1 (MHz) |
| Typical Single Supply Voltage (V) | 3 → 32 V |
| Length | 9.4 (mm) |
| Package Type | TO-99 |
| Minimum Operating Temperature | -55 °C |
| Amplifier Type | Low Power |
| Height | 4.7 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
