LM211P
Differential Comparator With Strobes
Availability: In Stock
Package Type: PDIP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM211P by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

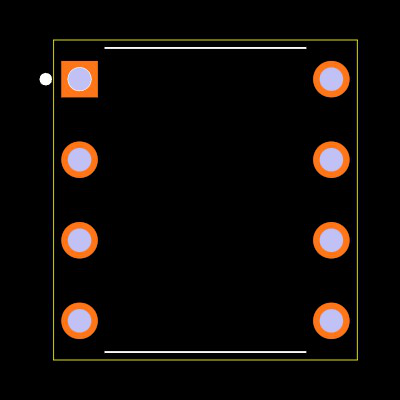

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM211P
| Part Name | LM211P |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Dual Supply Voltage (V) | ±12 V, ±3 V, ±5 V, ±9 V |
| Comparator Type | General Purpose |
| Dimensions | 9.81 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 1 |
| Length | 9.81 (mm) |
| Output Type | Open Collector/Emitter |
| Height | 4.57 (mm) |
| Width | 6.35 (mm) |
| Typical Single Supply Voltage (V) | 5 → 28 V |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Typical Response Time | 0.165 (µs) |
| Typical Voltage Gain (V) | 106.02 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
Inventory for the LM211P by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
16,582
|
|
Visit Site |
No issues have been reported for the LM211P
