LM2575T-12

Name: LM2575T-12
Brand: Texas Instruments

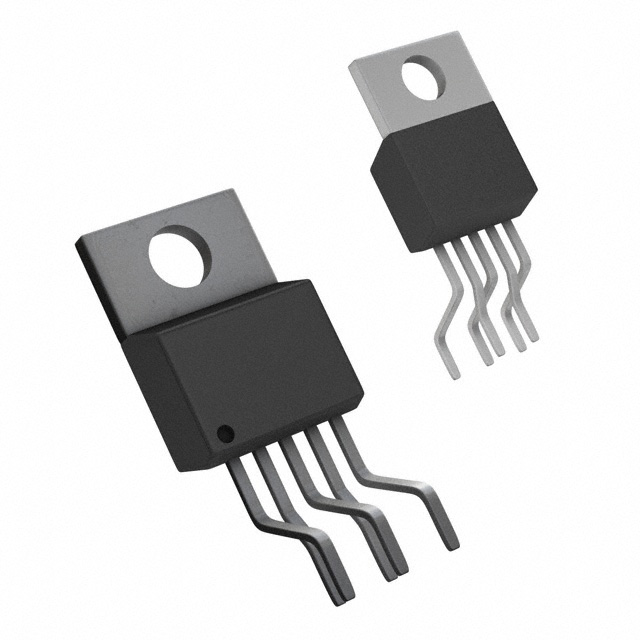

SIMPLE SWITCHER 1A Step-Down Voltage Regulator 5-TO-220 -40 to 125

Availability: Out of Stock

Package Type: TO-220-5

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the LM2575T-12 by Texas Instruments and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the LM2575T-12

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the LM2575T-12

Part Name	LM2575T-12
Manufacturer	Texas Instruments
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Number Of Outputs	1
Dimensions	10.16 x 4.7 x 8.89 (mm)
Mounting Type	Through Hole
Efficiency	88 (%)
Maximum Output Current (A)	1 (A)
Output Type	Fixed
Maximum Switching Frequency	58 kHz
Switching Regulator	Yes
Width	4.7 (mm)
Length	10.16 (mm)
Package Type	TO-220
Regulator Function	Buck Controller, Inverting
Minimum Operating Temperature	-40 °C
Height	8.89 (mm)
Maximum Operating Temperature	+125 °C
Pin Count	5
Maximum Input Voltage (V)	40 V
Minimum Input Voltage (V)	4 V

We could not find inventory or pricing across major distributors for the LM2575T-12 by Texas Instruments.
