LM2576-5.0WU
Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Availability: In Stock
Package Type: TO-263-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM2576-5.0WU by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

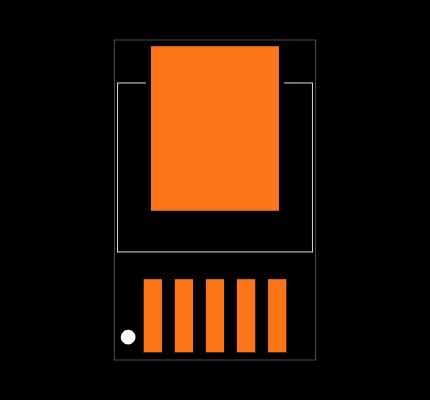

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM2576-5.0WU
| Part Name | LM2576-5.0WU |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Converter Type | Step Down |
| Dimensions | 10.67 x 9.17 x 4.59 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 3 (A) |
| Output Type | Fixed |
| Maximum Switching Frequency | 0.058 MHz |
| Switching Regulator | Yes |
| Width | 9.17 (mm) |
| Length | 10.67 (mm) |
| Package Type | TO-263 |
| Maximum Output Voltage (V) | 5 V |
| Minimum Operating Temperature | -40 °C |
| Height | 4.59 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 40 V |
| Minimum Input Voltage (V) | 4 V |
