LM2576SX-5.0
Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Availability: In Stock
Package Type: TO-263-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM2576SX-5.0 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

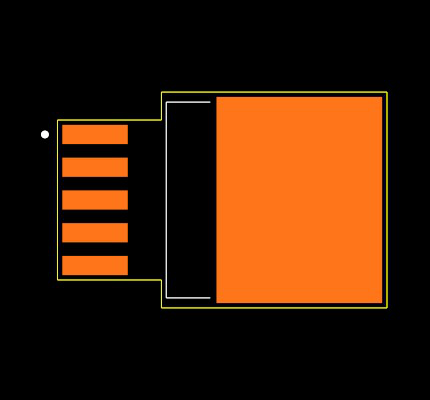

Footprint
No web preview
This Footprint is Available for

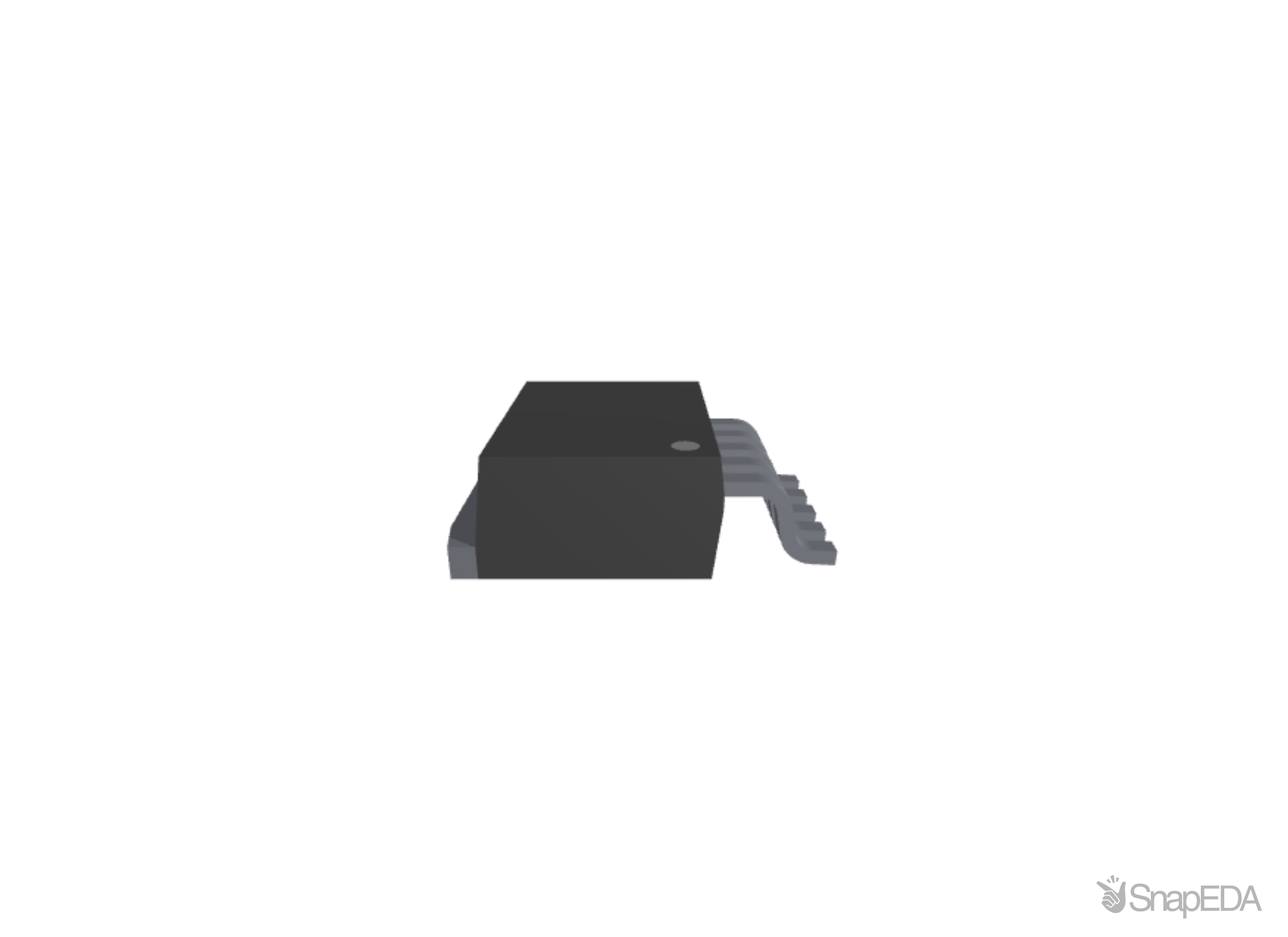

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM2576SX-5.0
| Part Name | LM2576SX-5.0 |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Outputs | 1 |
| Output Type | Adjustable |
| Package Type | TO-263-5 |
| Maximum Output Voltage (V) | 37 V |
| Minimum Output Voltage (V) | 1.23 V |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 5 |
| Minimum Input Voltage (V) | 4 V |
Inventory for the LM2576SX-5.0 by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
29,000
|
340 x $0.89
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the LM2576SX-5.0
