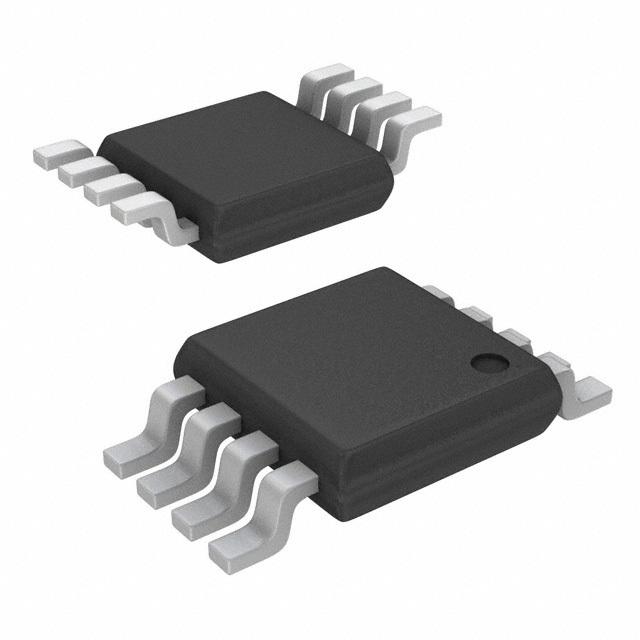

LM258AST
Standard (General Purpose) Amplifier 2 Circuit 8-MiniSO
Availability: In Stock
Package Type: TSSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM258AST by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

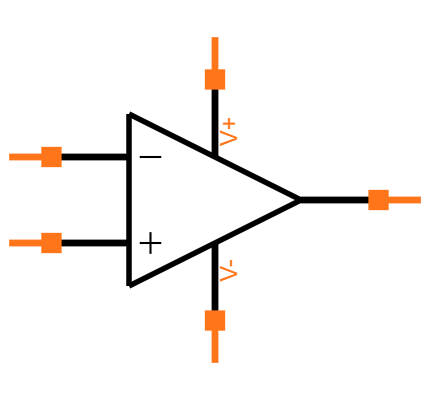

Symbol
No web preview
This Symbol is Available for

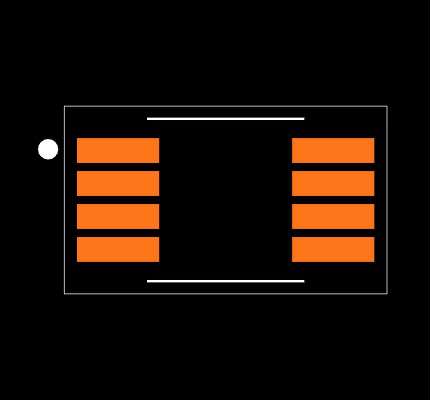

Footprint
No web preview
This Footprint is Available for

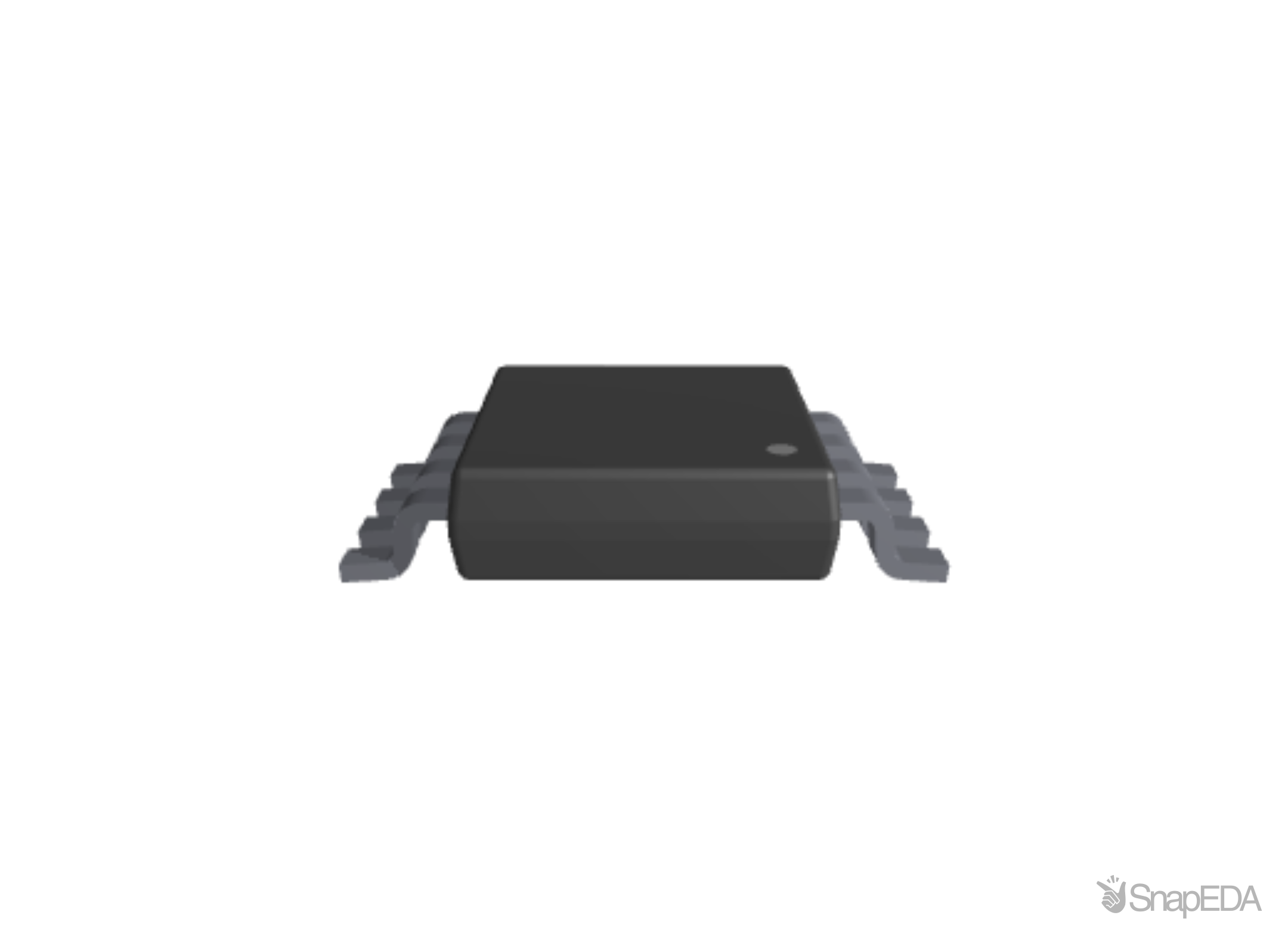

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM258AST
| Part Name | LM258AST |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.2 x 3.1 x 0.95 (mm) |
| Typical Slew Rate | 0.6 (V/µs) |
| Typical Gain Bandwidth Product | 1.1 (MHz) |
| Width | 3.1 (mm) |
| Maximum Operating Frequency | 100 kHz |
| Input Offset Current (A) | 10 (nA) |
| Power Supply Type | Single |
| Output Type | Swing |
| Package Type | MiniSO |
| Typical Voltage Gain (V) | 100 dB |
| Maximum Operating Temperature | +105 °C |
| Typical Single Supply Voltage (V) | 3 → 30 V |
| Pin Count | 8 |
| Offset Voltage (V) | 3 (mV) |
| Typical Input Voltage Noise Density (V) | 55 (nV/√Hz) |
| Mounting Type | Surface Mount |
| Output Current (A) | 20 (Sink) mA, 60 (Source) mA |
| Input Voltage Range (V) | 3 → 30 V |
| Number Of Channels Per Chip | 2 |
| Length | 3.2 (mm) |
| Height | 0.95 (mm) |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Dual Operational |
| Maximum Input Voltage (V) | 30 V |
| Minimum Input Voltage (V) | 3 V |
Inventory for the LM258AST by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
41,043
|
|
Visit Site | |
|
★ Featured
|
10,474
|
|
Visit Site | |
|
★ Featured
|
3,739
|
N/A | Visit Site | |
| Arrow Electronics |
20,000
|
8,000 x $0.11
|
Visit Site | |
| Chip One Stop |
3,965
|
|
Visit Site | |
| Farnell UK |
4,867
|
|
Visit Site | |
| Newark |
2,044
|
|
Visit Site | |
| RS UK |
4,775
|
|
Visit Site | |
| TME |
3,890
|
|
Visit Site | |
| Verical |
20,000
|
8,000 x $0.11
|
Visit Site | |
| element14 Singapore |
4,867
|
|
Visit Site |
No issues have been reported for the LM258AST
