LM2594HVM-12
Buck Switching Regulator IC Positive Fixed 12V 1 Output 500mA 8-SOIC (0.154", 3.90mm Width)
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM2594HVM-12 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

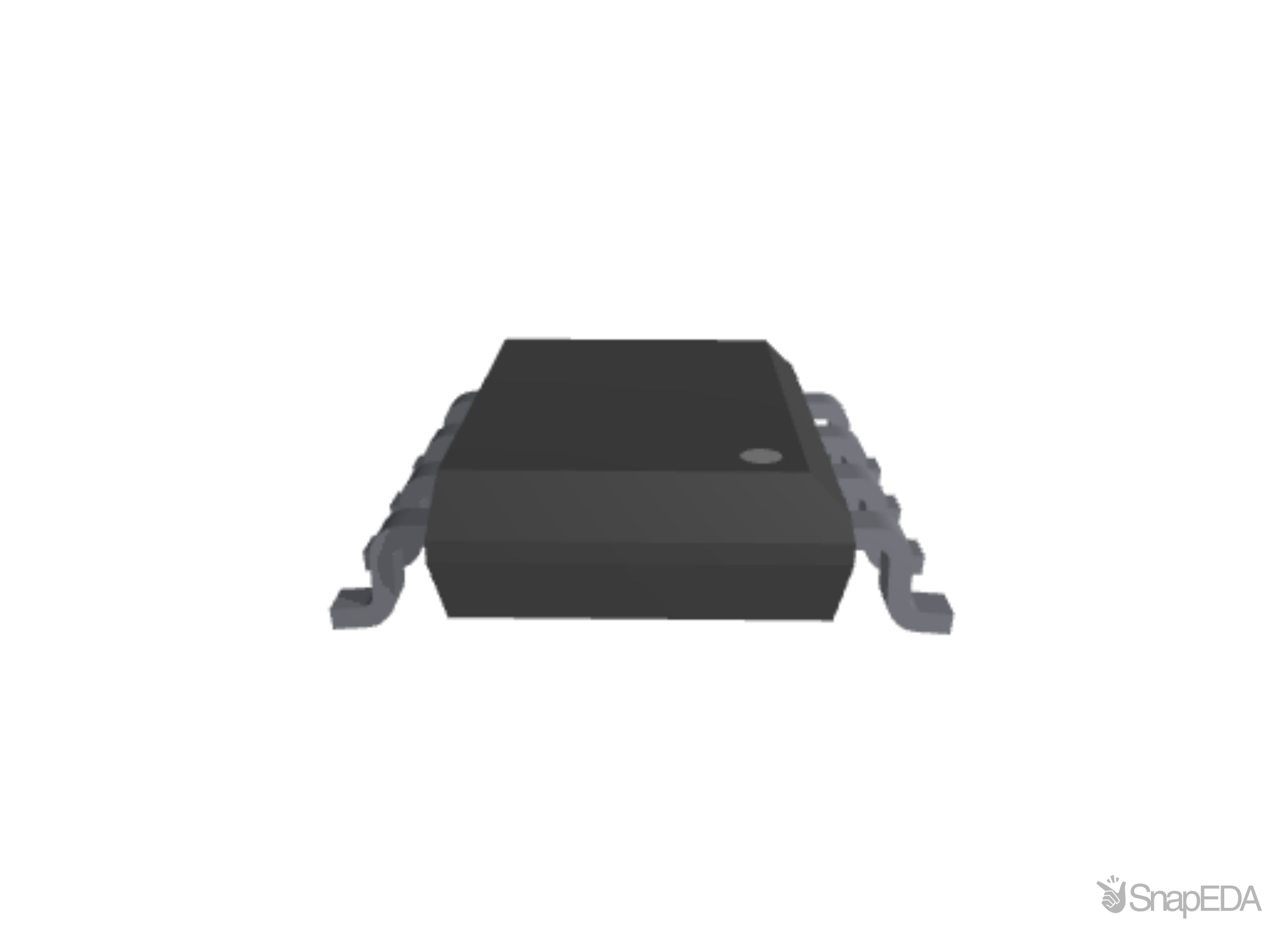

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM2594HVM-12
| Part Name | LM2594HVM-12 |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Number Of Outputs | 1 |
| Converter Type | Step Down |
| Dimensions | 5.004 x 3.988 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Efficiency | 88 (%) |
| Maximum Output Current (A) | 500 (mA) |
| Output Type | Fixed |
| Maximum Switching Frequency | 0.15 MHz |
| Switching Regulator | Yes |
| Width | 3.988 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Maximum Output Voltage (V) | 12 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 60 V |
| Minimum Input Voltage (V) | 4.5 V |
