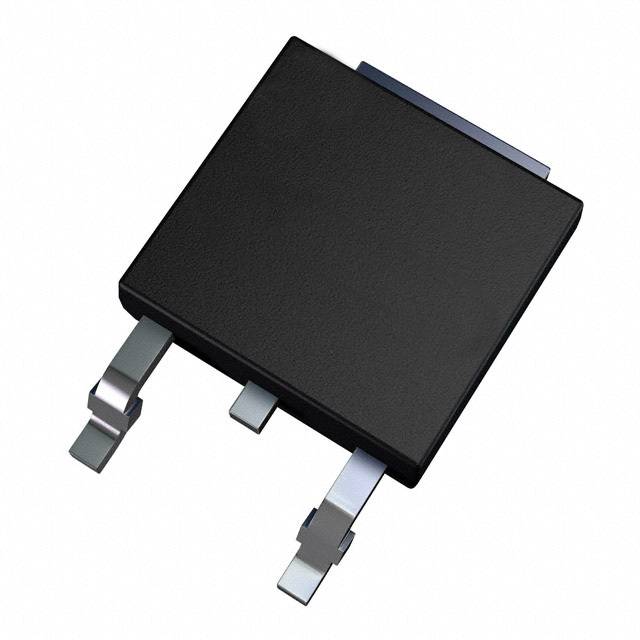

LM317MDT
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA DPAK
Availability: Out of Stock
Package Type: DPAK
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM317MDT by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

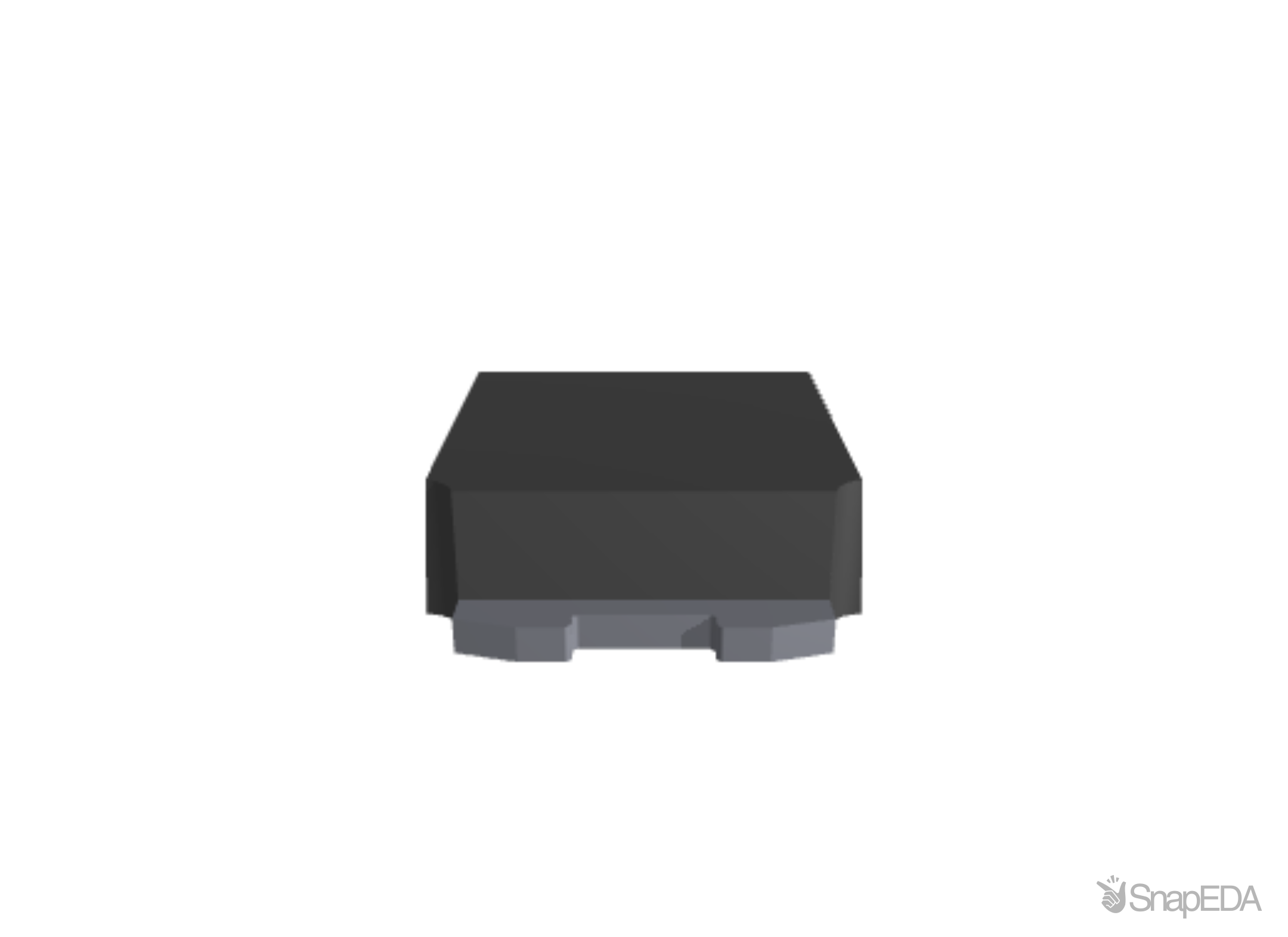

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM317MDT
| Part Name | LM317MDT |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 0.5 %/Vo |
| Dimensions | 6.6 x 6.2 x 2.4 (mm) |
| Mounting Type | Surface Mount |
| Reference Voltage (V) | 1.3 (V) |
| Maximum Output Current (A) | 200 (mA) |
| Regulator Type | Linear Voltage |
| Output Type | Adjustable |
| Height | 2.4 (mm) |
| Width | 6.2 (mm) |
| Length | 6.6 (mm) |
| Output Voltage (V) | 1.2 → 37 V |
| Package Type | DPAK |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Line Regulation | 0.04 %/V |
No issues have been reported for the LM317MDT
