LM386N-3/NOPB
700-mW, mono, 5- to 18-V, analog input Class-AB audio amplifier
Availability: In Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM386N-3/NOPB by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

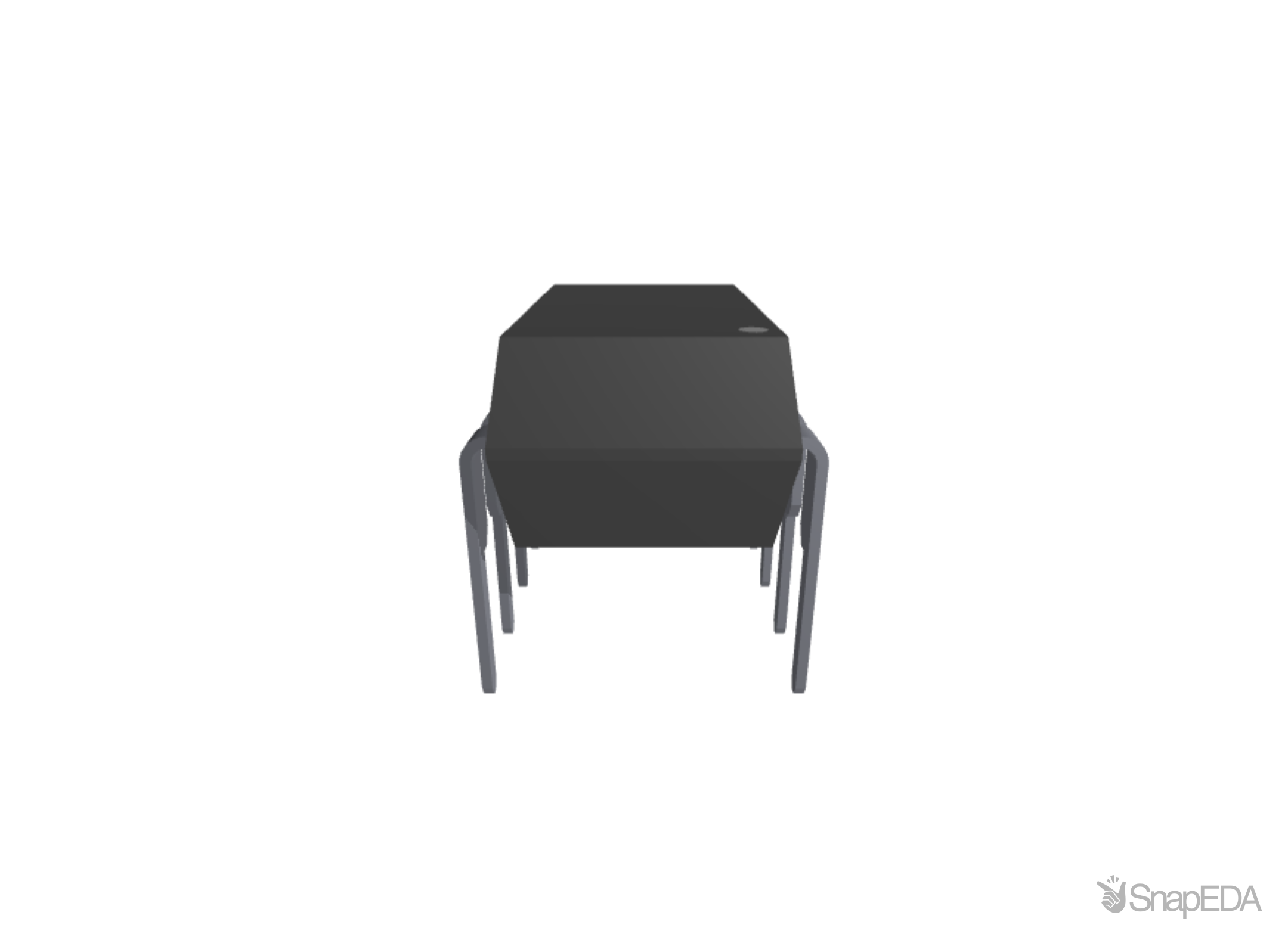

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM386N-3/NOPB
| Part Name | LM386N-3/NOPB |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Amplifier Class | Class A-B, Class D |
| Maximum Power | 0.7 (W) |
| Output Signal Type | Single |
| Mounting Type | Through Hole |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 1 |
| Typical Gain Bandwidth Product | 300 (kHz) |
| Output Type | 1 Channel Mono |
| Input Signal Type | Differential |
| Typical Single Supply Voltage (V) | 4 → 12 V |
| Package Type | PDIP |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | Audio Power Amplifier |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
| Dimensions | 10.16 x 6.35 x 3.3 (mm) |
Inventory for the LM386N-3/NOPB by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,052
|
|
Visit Site | |
|
★ Featured
|
8,000
|
710 x $0.42
|
Visit Site | |
| Arrow Europe |
1,120
|
|
Visit Site | |
| Texas Instruments |
56,436
|
|
Visit Site | |
| Verical |
965
|
13 x $0.46
|
Visit Site |
No issues have been reported for the LM386N-3/NOPB
