LM397MFX
Comparator Standard (General Purpose) Open-Collector, Rail-to-Rail SOT-23-5
Availability: In Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM397MFX by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

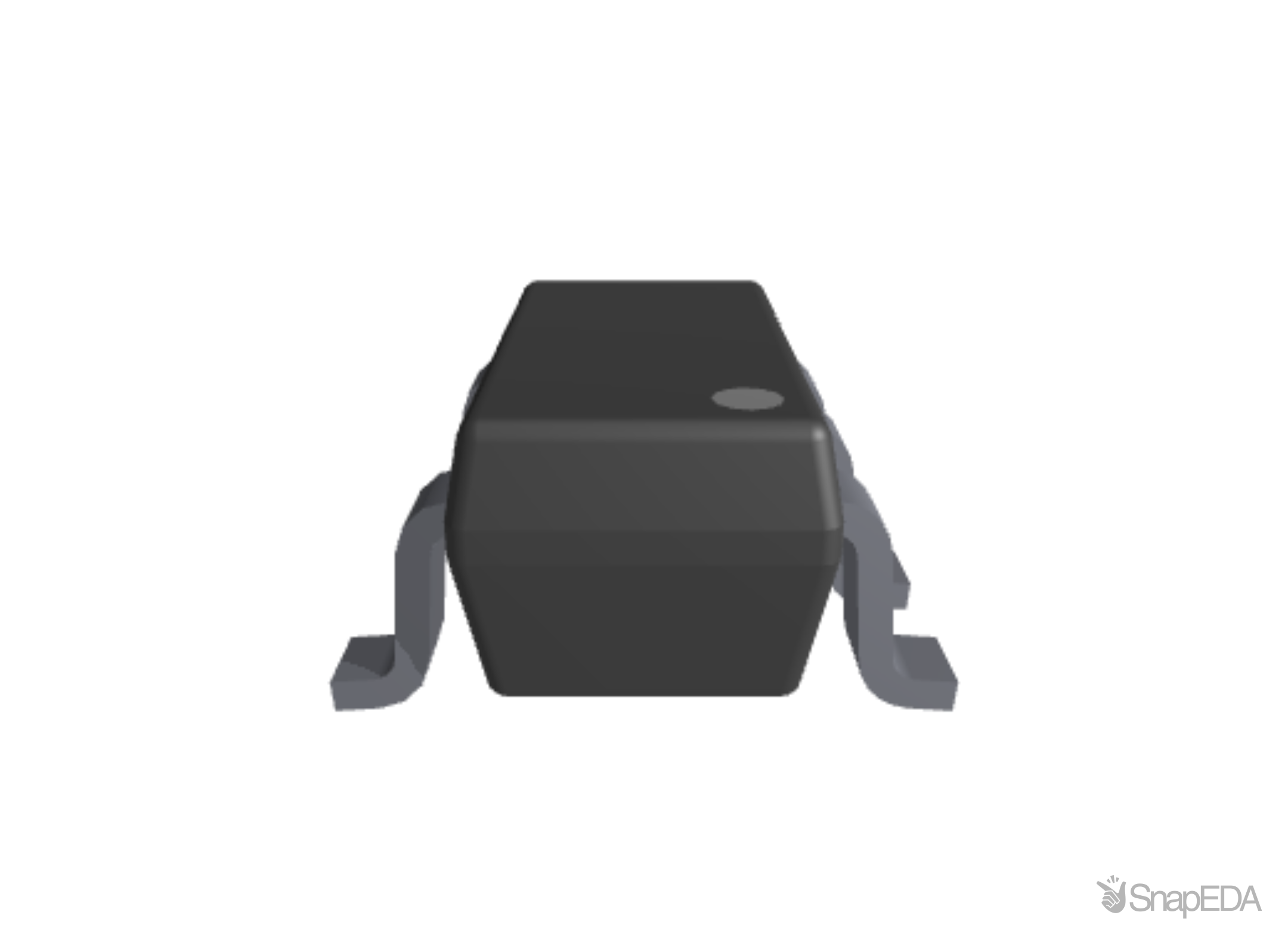

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM397MFX
| Part Name | LM397MFX |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 1 |
| Typical Single Supply Voltage (V) | 30 V |
| Package Type | SOT-23-5 |
| Typical Response Time | 0.44 (µs) |
| Pin Count | 5 |
