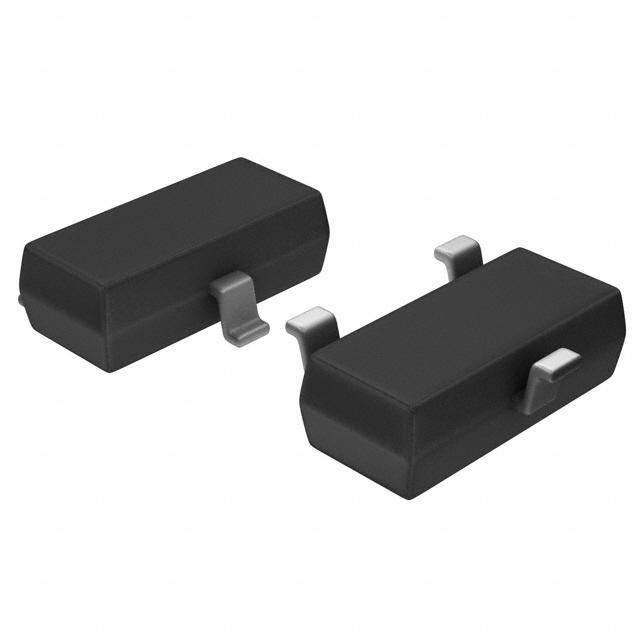

LM4040CIM3-4.1
100-ppm/C precision micropower shunt voltage reference 3-SOT-23
Availability: In Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM4040CIM3-4.1 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM4040CIM3-4.1
| Part Name | LM4040CIM3-4.1 |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Load Regulation | 7 mV |
| Dimensions | 2.92 x 1.3 x 0.93 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Height | 0.93 (mm) |
| Width | 1.3 (mm) |
| Length | 2.92 (mm) |
| Initial Accuracy | ±0.5 % |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40 °C |
| Nominal Voltage (V) | 4.1 (V) |
| Reference Type | Fixed |
| Maximum Output Current (A) | 15 (mA) |
| Pin Count | 3 |
| Topology | Shunt |
