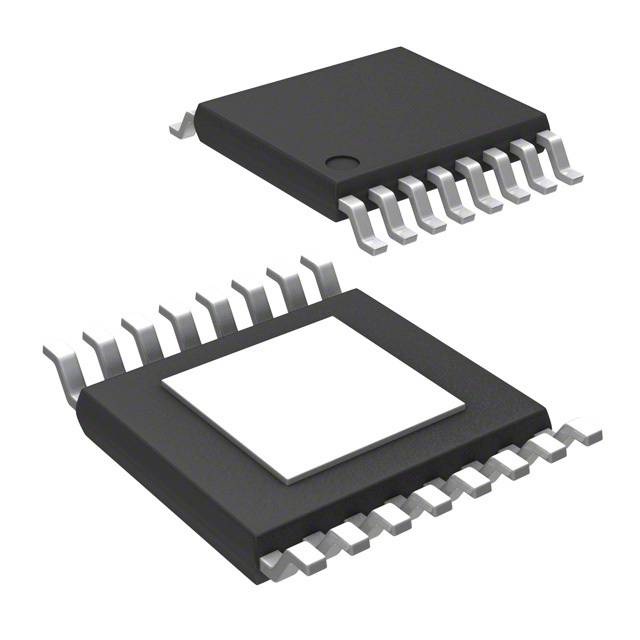

LM43603PWPT
3.5V to 36V, 3A Synchronous Step-Down Voltage Converter
Availability: In Stock
Package Type: HTSSOP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the LM43603PWPT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the LM43603PWPT
| Part Name | LM43603PWPT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Dimensions | 5.1 x 4.5 x 1.05 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Voltage (V) | 28 V |
| Maximum Operating Temperature | +125 °C |
| Regulator Function | Step Down |
| Output Type | Adjustable |
| Maximum Switching Frequency | 2.2 MHz |
| Width | 4.5 (mm) |
| Length | 5.1 (mm) |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 1 V |
| Height | 1.05 (mm) |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 16 |
| Maximum Input Voltage (V) | 36 V |
| Minimum Input Voltage (V) | 3.5 V |
Inventory for the LM43603PWPT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
267
|
|
Visit Site | |
|
★ Featured
|
37,550
|
360 x $0.84
|
Visit Site | |
| Texas Instruments |
26,879
|
|
Visit Site |
No issues have been reported for the LM43603PWPT
